Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
N |
Memory
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory type |
DDR3L-SDRAM |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
16 GB |
| Internal memory |
8 GB |
Storage
| Storage drive size |
2.5 " |
| Total storage capacity |
128 GB |
| Card reader integrated |
N |
| Storage drive interface |
Serial ATA |
| Storage media |
SSD |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
Ports & interfaces
| Line-out |
Y |
| USB 2.0 ports quantity |
2 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Weight & dimensions
| Depth |
252 mm |
| Weight |
2000 g |
| Width |
273 mm |
| Height |
37 mm |
Graphics
| On-board graphics adapter model |
Intel HD Graphics 4600 |
Processor
| Processor frequency |
4 GHz |
Certificates
| Certification |
UL, cUL ,FCC, IC, CE, VCCI, BSMI, RCM, CB |
Packaging data
| Package depth |
362 mm |
| Package weight |
2700 g |
| Package width |
390 mm |
| Package height |
120 mm |
Additionally
| Chipset |
Intel H81 |
| Colour of product |
Black |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |

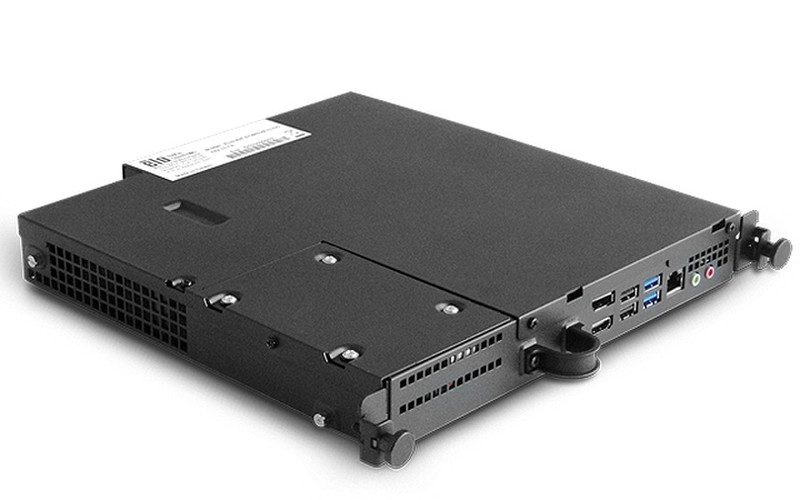

Core i7 4 GHz, 8GB DDR3L SO-DIMM, Intel HD 4600, 128 GB SSD, 2x USB 2.0 Type A, 2x USB 3.0 Type A, 1GB LAN RJ-45, HDMI, DisplayPort, Windows 10
The Elo Interactive Digital Signage (IDS) touch platform featuring the Intel® Core™ 4th Generation CPUs with enhanced graphic engines enables increased customer engagement and immersive brand experiences by adding an exciting new dimension to traditional broadcast digital signage - the power of touch.
Commercial-grade.
Elo's ECMG2 computer modules, available for use with the Elo 3201L, 3202L, 4201L, 4202L, 4602L, 5501LT and 7001LT IDS touchscreens are well-suited for interactive media delivery and online collaboration for modern office environments. The computer modules are easily installed into the IDS display – avoiding costs of in-wall installation of a traditional player or PC.
Powerful processing.
Computer modules are available in a choice of three models: ECMG2-i3 based on a 3.40GHz Intel® Core i3 processor and HD4400 graphics; ECMG2-i5 based on a 3.70GHz Intel® Core i5 processor and HD4600 graphics; and ECMG2-i7 based on a 4.00GHz Intel®Core i7 processor and HD4600 graphics.
Reliability.
Centralized management and security capabilities of Microsoft® Windows® ensures compatibility with many content management servers and web-based consoles for seamless connection with the internet, digital marketing, interactive whiteboard, building directory, virtual receptionist, and point-of-information (POI) applications. The ECM can also support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via device-to-device or web connections.
