Ports & interfaces
| Line-out |
Y |
| Line-in |
Y |
| VGA (D-Sub) ports quantity |
1 |
| PoweredUSB |
Y |
| Serial ports quantity |
2 |
Storage
| Hard drive speed |
5400 RPM |
| Hard drive capacity |
320 GB |
| Hard drive interface |
Serial ATA |
| Storage media type |
HDD |
| Total storage capacity |
320 GB |
Memory
| Internal memory type |
DDR3L-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
SO-DIMM |
| Maximum internal memory |
8 GB |
| Internal memory |
2 GB |
| Memory clock speed |
1600 MHz |
Networking
| Wi-Fi |
Y |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Processor
| Processor frequency |
2 GHz |
| Processor cores |
4 |
| Processor cache |
2 MB |
Display
| Effective viewing area |
337.92 x 270.36 mm |
Graphics
| Graphics adapter manufacturer |
Intel |
Additionally
| Ethernet LAN connection |
Y |
| RS-232 port |
2 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Graphics |
HD Graphics |
Intel Celeron J1900(2M Cache, up to 2.42 GHz), 2GB 1600MHz DDR3L, 320GB 2.5” 5400RPM, 43.18 cm (17 ") TFT 1280 x 1024, IntelliTouch Zero-Bezel, Intel HD, 9 x USB, 2 x RS-232, RJ45, 802.11 b/g/n, Bluetooth 4.0, Windows POSReady 7 (64-bit)

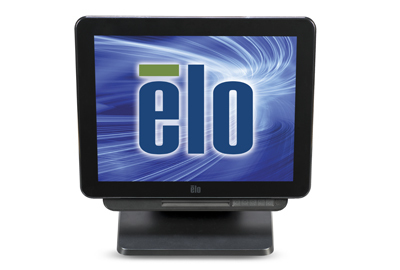

The new Elo X-Series 15-inch and 17-inch All-in-One (AiO) touchcomputers bring style, flexibility and functionality to point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. Configuration customization, serviceability and performance combine to deliver touchcomputing that adapts to your existing hardware, software and connectivity requirements.
The X-Series AiO touchcomputers are available with industry-leading touchscreen technologies from Elo including AccuTouch® micro-bezel 5-wire resistive, IntelliTouch® surface acoustic wave, IntelliTouch zero-bezel surface acoustic wave (SAW) and IntelliTouch Pro Projected Capacitive (PCAP).
The fan-less models utilize the Intel® Celeron Quad-Core processor for environments where noise may be an issue. Higher performance, the fan-cooled models feature 4th Generation Intel Core i3, i5 and i7 processors and HD2500 graphics. A wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options make the X-Series a versatile and powerful AiO solution.
The X-Series configuration choices meet the diverse needs of a wide variety of POS, POI and point-of-service venues, including retail and hospitality display units, customer loyalty systems and in-store kiosks, just to name a few.
