Satellite speakers
| Number of satellite speakers |
2 |
| Satellite speaker peak power |
500 W |
| Satellite speaker woofers quantity |
1 |
| Satellite speaker frequency range |
55 - 19000 Hz |
| Satellite speakers RMS power |
250 W |
| Satellite speaker impedance |
8 Ω |
| Satellite speaker tweeters quantity |
1 |
Audio
| Recommended usage |
Universal |
Subwoofer
| Subwoofer type |
Active subwoofer |
| Subwoofer drivers quantity |
1 |
| Subwoofer frequency range |
80 - 180 Hz |
| Bass adjustment |
Y |
| Subwoofer RMS power |
500 W |
Technical details
| Subwoofer height |
580 mm |
| Subwoofer depth |
450 mm |
| Speaker width |
580 mm |
| Speaker height |
335 mm |
| Speaker depth |
375 mm |
| Subwoofer width |
486 mm |

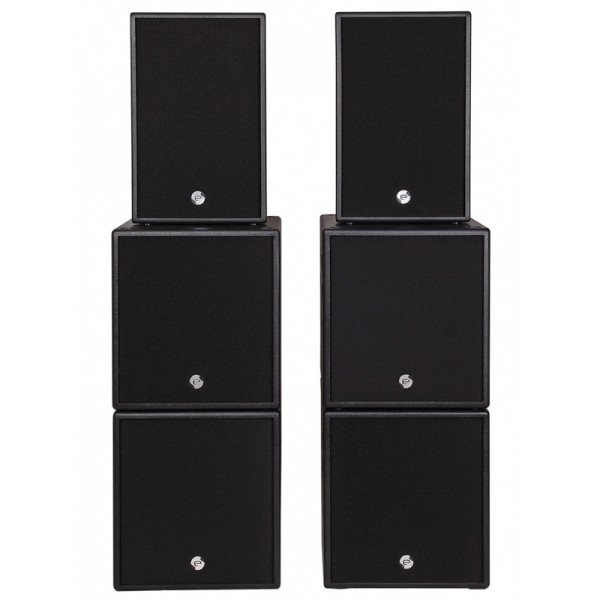

Elo-2500 (2x ELO 12, 2x ELO SUB15A, 2x ELO SUB15A Mono), 2500W RMS
<b>Elo-2500</b>
- Pack premium composed of 2 ELO 12, 2 ELO SUB15A and 2 ELO SUB15Amono
- Total power 2500W RMS
<b>Elo-12</b>
- Passive speaker
- Woofer 12" (31cm)
- Tweeter 1" Titanium compression driver
- Power : 250W RMS/500W Max u@ 8 Ohms
- Bandwidth @-10dB : 55Hz-19Khz
- SPL Max. : 127 dB
- Sensitivity (1W/1m): 97dB
- Cutoff frequency of the filter : 2.5 Khz
- Input connector : 1 x Speakon
- Universal base 35mm for speaker stand
- 2 carrying handles on the sides
- Black paint finish
- Dimensions of speaker only : 15 x 13 x 23 inches
- Weight of speaker only : 18 kg (40lbs)
<b>Elo-Sub15A</b>
- Active subwoofer (Powered)
- D-class amplifier
- 1 Woofer 15" (15 inches)
- Power : 500W RMS + 2x150W RMS
- Limiter and protections against short circuit and overheating
- XLR/Jack 1/4" inputs
- Speakon Outputs, with selector " Curve Switch" depending on the satellites used
- Setting separate levels for Right / Left / Sub
- Sélector Mono/Stéréo for use 2 outputs satellites in MONO mode
- Dimension of speaker only : 18 x 23 x 19 inches
- Weight of subwoofer only : 38 kg (84 lbs)
- Delivered with 2 speaker stands and 2 Speakon cables
- Black paint finish
<b>Elo- Sub15A Mono</b>
- Active subwoofer (Powered)
- D-class amplifier
- 1 Woofer 15" (15 inches)
- Power : 500W RMS
- Limiter and protections against short circuit and overheating
- LINK and Highpass @ 100 Hz outputs
- X-over frequency for the sub adjustable from 80Hz à 180Hz
- Adjustable level
- Combo XLR/Jack 1/4" inputs
- Phase selector 0/180°
- Black paint finish
- Dimension of subwoofer only: 18 x 23 x 19 inches
- Weight of subwoofer only : 38 kg (84lbs)
- Delivred with 2 Speakon cables
