Power
Connecting terminals |
2.5 mm2 / 2x 1.5 mm2 |
Circuit breaker |
Y |
Maximum switching capacity |
1000 W |
Circuit breaker current |
16 A |
Neutral conductor required |
Y |
Features
Timer duration (minimum) |
1 s |
Programmable timer |
Y |
Maximum outdoor range |
100 m |
Maximum indoor range |
30 m |
Timer duration (maximum) |
12 min |
Pulse duration |
2 min |
e-Domotica, AC 230V, 50Hz, 16 A, 1000W, IP20
<b>e-Domotica Blinds Control Insert</b>
<b>Control your blinds or roller shutters with the e-Domotica system!</b>
- Blind/Shutter Control Insert with RF Sensor Button and Frame in one box
- The blind control system is developed for switching blind or roller shutter motors
- The insert has two electrically and mutually interlocked relay contacts
- You can control one conventional motor or several motors with integrated isolating relay
- Switching capacity total max. 1000W
- Blind time switch default 2 minutes or programmable from 1s up to 12min
- Switch connected load using sensor surface or using e-Centre
<b>Сontrol your blinds using the EM6630 e-Domotica Blinds Control Insert with Sensor Button and Frame. You can operate the connected blinds manually or you can sit back and use a e-Domotica e-Centre 2 or a fully automatic time control instead. The blind control insert is suitable for several situations, for example a bedroom or living room.</b>
<b>e-Domotica from Eminent: Easy and affordable</b>
If you are on the road, do you think about your house? Do you want to know if you turned off your coffee machine? Or, if you are away, do you want to check what is going on at home?
Would it not be comfortable to check your house? Just by using your tablet or smart phone, wherever you are, whenever you want.
And if you are coming home, is it not practical if the lights are switched on automatically? Or to dim the lights when turning on your TV?
This is all possible using Eminent e-Domotica. Which is very affordable and easier than you think.

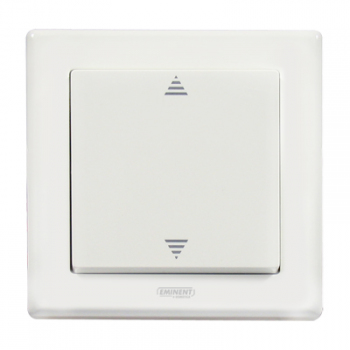

<b>e-Domotica Blinds Control Insert with Sensor Button and Frame</b>
One of the products in the e-Domotica family is the EM6620 e-Domotica Blinds Control Insert with Sensor Button and frame. The blinds control enables you to control your blinds in several situations:
- locally, using the sensor cover
- on your e-Domotica e-Centre 2
- on your tablet or smart phone using at home or when you are away
The insert has two electrically and mutually interlocked relay contacts that reliably prevent both relay outputs from being controlled at the same time thus preventing damage being caused to the connected motors.
For every insert, you can control one conventional motor with a limit position switch or several motors with integrated isolating relay up to max. 1000 W.
<b>Great wireless range</b>
The EM6620 e-Domotica Blinds Control Insert with Sensor Button is equipped with Z-Wave wireless technology. This technology is very reliable and offers great wireless range, due to the repeater function. This means that the blinds control also works as an extender so you can maximize the range.
