Ports & interfaces
| Internal |
Y |
| Host interface |
PCI-E |
Networking
| Modulation |
16-QAM, 64-QAM, ASK, OFDM, BPSK |
| Maximum operating distance |
300 m |
| Frequency band |
2.412 - 2.484 GHz |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Wi-Fi |
Y |
Antenna
| Antenna connector type |
R-SMA |
| Gain |
5 dBi |
Other features
| Outdoor range |
300m |
| Link/Act LED |
Y |
Additionally
| Wireless technologies |
Wireless |
| Transfer rate (Mbps) |
150 Mbit/s |
| Indoors max range |
100m |
IEEE 802.11b/g/n, 2412 - 2484 MHz, 150Mbps, 1x PCI-E, Black

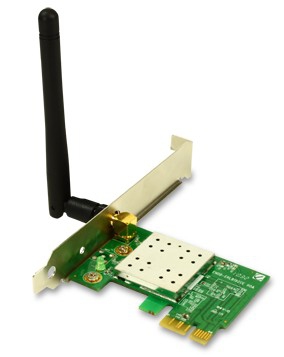

The ENCORE ENEWI-1XN42/ENEWI-1XN45 Wireless N150 PCI-E Adapter is fully compliant with IEEE 802.11n 2.0 specification; it allows users to connect to 802.11n wireless networks up to 150 Mbps. It is also backward-compatible with IEEE 802.11b/g wireless network at 11/54 Mbps respectively. This PCI-E adapter includes a convenient utility software for scanning available wireless networks and an option to save profiles of preferred networks at user’s choice. Configurable wireless security and encryption software are also included.
