Bandwidth
| Supported data transfer rates |
54Mbps |
| Full duplex |
Y |
Protocols
| Media access protocol |
CSMA/CA(ACK) |
Other features
| Link/Act LED |
Y |
| Non-operating relative humidity (non-condensing) |
10 - 95% |
| Outdoor range |
300m |
| Compliance industry standards |
802.11g |
| Networking features |
Wireless LAN |
Performance
| Receiver sensitivity |
54Mbps: Typical - 71dBm @ 10% PER\n11Mbps: Typical - 83dBm @ 8% PER |
Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
| Interface |
WLAN |
| Slot type |
32 |
Wireless LAN features
| WLAN data transfer rates supported |
54 Mbit/s |
| Wi-Fi |
Y |
Power
| TX power consumption |
480 mA |
| RX power consumption |
300 mA |
Networking
| Maximum operating distance |
300 m |
| Frequency band |
2.412 - 2.484 GHz |
Additionally
| Indoors max range |
100m |
| Transfer rate (Mbps) |
108 Mbit/s |
| Ethernet LAN connection |
N |
| Wireless technologies |
Wireless |
ENLWI-SG, PCI, 108Mbps, 802.11b, 2 db, 100m/300m, WPA-PSK, WPA , WEP

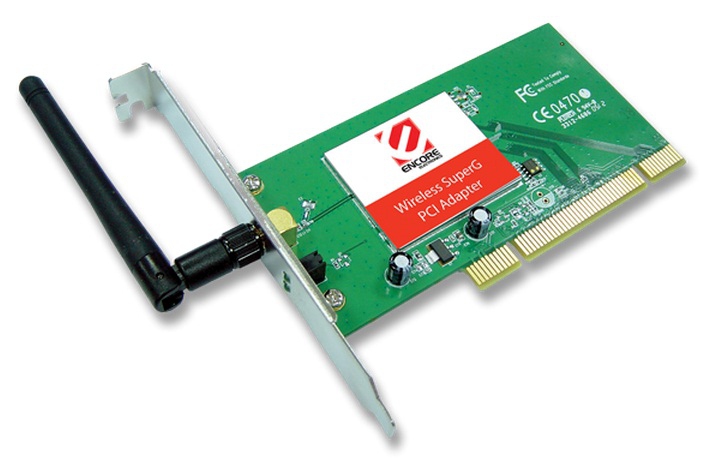

Super-G Wireless PCI Adapter
he Encore ENLWI-SG Wireless Super-G PCI Adapter delivers a much higher wireless transfer speed than a standard 802.11g PCI adapter. It transfers data, including digital video and MP3 files, at a blazing, wireless speed up to 108Mbps. This adapter is backward compatible with 802.11b/g standards so you don’t have to replace existing wireless devices. Using user-friendly software, you can easily install this adapter and configure its strong security features, including WPA, WPA/PSK and WEP data encryption.
ENLWI-SG instantly upgrades your desktop PC into a wireless workstation. The place-anywhere approach allows you to accomplish high level of productivity that is not available under wired networks. Use this Wireless Super-G PCI Adapter to add wireless (desktop) workstations to your super-fast wireless local area network.
The ENLWI-SG is an essential component for your small office or home wireless networking. It uses a 32-bit PCI interface to provide your desktop with continuous wireless access to your router. Use this adapter to surf the Internet, play online games or share office resources wirelessly and securely from your desktop.
The ENLWI-SG PCI Adapter works on two modes. With the Ad-hoc mode, you can connect directly with other 802.11b/g/Super-G-enabled computers for peer-to-peer file sharing. For the infrastructure mode, connect to a wireless access point or router for access to the Internet in your home or small office.
Support Super-G technology to achieve wireless speed up to 108Mbps (2X faster than standard 802.11g products)
- Support WPA, WPA/PSK and 64/128 bit WEP data encryption for network security;
- Provide backward compatibility with 802.11b/g wireless standards;
- Operate on both ad-hoc and infrastructure mode;
- Transfer large digital video and MP3 files with ease.
