Bandwidth
| Supported data transfer rates |
54Mbps |
| Full duplex |
Y |
Protocols
| Media access protocol |
CSMA/CA(ACK) |
Other features
| Link/Act LED |
Y |
| Non-operating relative humidity (non-condensing) |
10 - 95% |
| Outdoor range |
300m |
| Compliance industry standards |
802.11g/b/n |
| Networking features |
Wireless LAN |
Performance
| Receiver sensitivity |
135 Mbps: Typical - 65dBm @ 10% PER\n54Mbps: Typical - 68dBm @ 10% PER\n11Mbps: Typical - 84dBm @ 8% PER |
Ports & interfaces
| Host interface |
USB |
| Internal |
N |
| Interface |
WLAN |
Networking
| Maximum operating distance |
300 m |
| Frequency band |
2.412 - 2.484 GHz |
Additionally
| Indoors max range |
100m |
| Transfer rate (Mbps) |
135 Mbit/s |
| Ethernet LAN connection |
N |
| Wireless technologies |
Wireless |
ENUWI-NX2, 802.11g/b/n, USB 2.0, 135Mbps, 100m/300m, WEP,WPA-PSK, WPA2-PSK, WPA, WPS, white

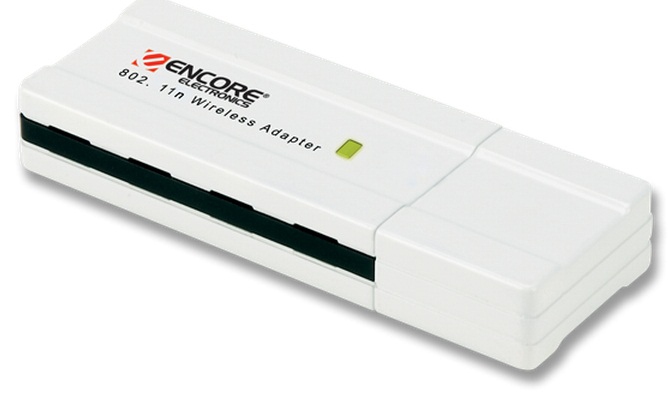

802.11n Wireless 1T2R USB Adapter
The ENCORE ENUWI-NX2, 802.11n Wireless USB adapter is fully compliant with IEEE 802.11n Draft 2.0, which provides users in launching IEEE 802.11n wireless networks at up to 300 Mbps speed in the 2.4GHz band. It is also backward-compatible with IEEE 802.11b/g wireless devices at 11/54 Mbps speed. It can be configured to connect to an ad-hoc network mode, connecting to other 2.4GHz wireless devices and computers, or to the Infrastructure network mode to connect to a wireless AP or wireless router for internet access. This USB adapter includes a convenient Utility Software for scanning available wireless networks and an option in saving profiles of the preferred networks of the user’s usual wireless connection. It is also equipped with a configurable wireless security and encryption software.
- Greater Bandwidth — meets the demand of bandwidth-intensive applications,such as HD video streaming, large file downloading and online gaming;
- Advanced Wireless Security — supports WEP, WPA, and WPA2 encryptions;
- Easy Installation;
- Interoperability — backward compatible with 802.11g/b wireless networks;
- Improved Wireless Reception — utilizes Multiple-Input-Multiple-Output (MIMO) technology;
- WiFi™, Certified and WPS™, Certified Product;
- Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless speed up to 300Mbps data rate;
- Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54Mbps data rate;
- Dynamic data rate scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g;
- Dynamic data rate scaling at 11, 5.5, 2 and 1Mbps for 802.11b;
- Supports Multiple Input Multiple Output (MIMO) technology with 1TX/2RX;
- Maximum reliability, throughput and connectivity with automatic data rate switching;
- Supports wireless data encryption with 64/128-bit WEP standard for security;
- Supports enhance security for WPA-PSK, WPA2-PSK, WPA and WPA2;
- Supports WPS (Wireless Protected Setup) Technology;
- Two internal smart antennas;
- Simple user setup & diagnostics utilities;
- Type approval compliant with FCC Part 15.247 for US and ETS 300 328 for Europe.
