Security
| Firewall security |
DoS |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
1, 2, 5.5, 6, 9, 11, 12, 15, 18, 22, 24, 30, 36, 48, 60, 90, 120, 157.5 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
| xDSL connection |
N |
| Bandwidth |
2.4 GHz |
| Outdoor range |
300 m |
| Networking features |
Fast Ethernet |
| Data transfer rate |
300 Mbit/s |
| Power supply type |
AC/DC |
| Frequency range |
2.4 - 2.4835 GHz |
Networking
| Media access protocol |
CSMA/CA |
| Receiver sensitivity |
IEEE802.11n - MCS0 -91dBm, MCS7 -74dBm\nIEEE802.11g - 6Mbps -90dBm, 54Mbps -70dBm\nIEEE802.11b - 1Mbps -90dBm, 11Mbps -87dBm |
| Management protocols |
PPoE, PPTP, L2TP |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, NAT, HTTP |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DQPSK, QPSK |
| Channels quantity |
13 |
Antenna
| Antenna gain level (max) |
4 dBi |
| Antenna connector type |
RP-SMA |
| Transmit power |
6 - 54 dBmW |
| Antennas quantity |
2 |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Additionally
| Indoors max range |
100 m |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
Wireless N300, 802.11b/g/n, Fast Ethernet, BPSK, QPSK, 16-QAM, 64-QAM, DQPSK, CCK, 2.4 - 2.484 GHz, SSID, WPS, WDS, 4dBi, QoS, 4 x LAN, 1 x WAN, TCP/IP, NAT, PPPoE, PPTP, L2TP, HTTP, DHCP, DoS, White

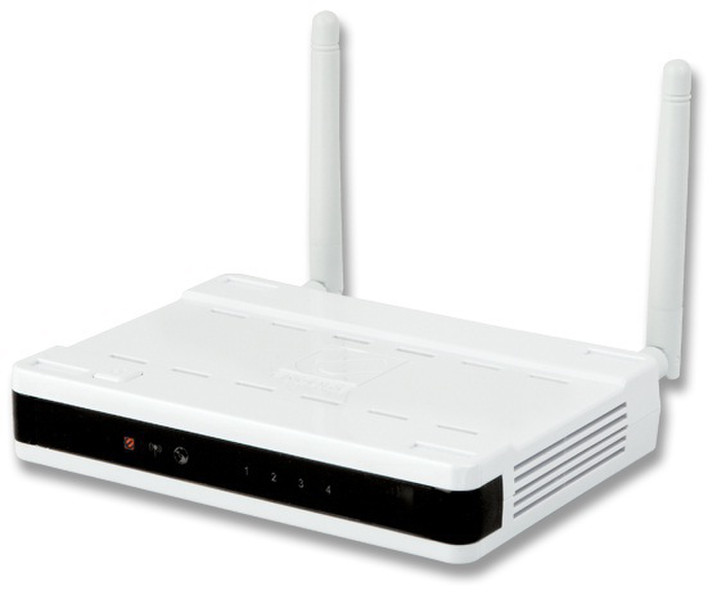

Encore’s ENHWI-2AN3 802.11n Wireless Router 2T2R single chip can deliver up to 6x faster speed than of 802.11g devices. ENHWI-2AN3 supports Home, Home Office and Small Business Office network with superior throughput, performance and unparalleled wireless range. With new and easy to use WPS™ or Wireless Protected Setup, users can easily established a wireless connection with just one push of a button and still get a secured wireless connection.
ENHWI-2AN3 is also equipped with a built-in 4-port full-duplex 10/100 Fast Ethernet Switch to connect to your wired-Ethernet computers and devices together to make a LAN. The Router function ties it all together and lets your whole network computers and laptops able to browse the internet and share the high-speed cable or DSL Internet connection using one public IP address your Internet Service Provider provided you. The ENHWI-2AN3 can also be a Wireless Repeater by changing mode to “Repeater Mode”.
- Setup New Wireless Network — Provides wireless network to your home or office under Router mode.
- Extend Existing Wireless Coverage — Increases coverage and eliminates dead spots under Repeater mode.
- Advanced Wireless Security and Firewalls — Safeguards your data and prevents intruders.
- Dynamic Parental Control — Filters web addresses and keywords to keep harmful content away.
- Create Up to 4 Wireless Networks with 1 Device (multiple SSID) — Setup separate networks for different departments in your office, or provide guest access for visitors at home.
- Two in one product. Can be use as a "Wireless AP Router Mode" or a "Wireless Repeater Mode".
- Easy and friendly installation guide. Equipped with a "Smart Wizard" software connecting your PC or laptop to the internet in an easy guided installation in a snap.
- Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless speed up to 300 Mbps data rate.
- Supports up to 4 SSID that can be used to separate your wireless sharing with groups such as Guests, Family Members, Neighbors, etc., each group can have own connection policies. Easy to install, no need to be a geek to get this feature up and running.
- Supports URL Filtering (or web site address filtering) and Keyword Filtering. This easy to set up feature can be use to control internet access use for Parental Guidance or Parental Control, web site or URL blocking such as specific web sites containing harmful images, etc. Keyword blocking such as harmful words blocking.
- Backward compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54 Mbps data rate.
- Uses the latest MIMO (or Multiple-Output-Multiple-Input) technology for faster and accurate wireless multiple input/output of data streams.
- Supports Bandwidth Control or Priority Queuing, use mostly for bandwidth hungry applications such as WiFi Multimedia, Audio/Video Streaming and much more.
- 4 x 10/100 Mbps Fast Ethernet port for wired LAN with Auto MDI-X function.
- 1 x 10/100Mbps WAN port for DSL or Cable Modem with Auto MDI-X function.
- IEEE 802.11b/g/n Infrastructure operating modes.
- Allows auto fallback data rate for optimized reliability, throughput and transmission range.
- Supports wireless data encryption with 64/128-bit WEP standard for security.
- Supports enhance security for WPA-PSK, WPA2-AES, WPA and WPA2.
- Web-based configuration tools and management via web browser.
- Supports WPS™ (Wi-Fi Protected Setup Specification Windows).
- Supports PPPoE / PPTP / L2TP protocol for xDSL ISP connection.
- Supports NAT feature to share one public IP address to all LAN user.
- Supports DHCP Server / Client.
- Supports Firewall protection, Virtual server mapping, Special application setting.
- Supports UPnP.
- Displays detailed router statistics information.
- Supports IEEE 802.1x Authentication, WDS (Wireless Distribution system), and Point-to-Point and Point-to-Multi Point Bridge.
