Design
| Water block material |
Copper |
| Radiator material |
Aluminium |
| Tube material |
Plastic |
Power
| Fan voltage |
12 V |
| Pump current |
300 mA |
| Pump voltage |
12 V |
| Fan current |
0.45 A |
Technical details
| Fan connector |
4-pin |
| Maximum airflow |
111 cfm |
| Minimum airflow |
28.6 cfm |
| Pump motor speed |
2300 RPM |
| Number of fans |
1 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket FM1 |
| Fan speed (max) |
2500 RPM |
| Fan speed (min) |
600 RPM |
| Noise level |
30 dB |
Weight & dimensions
| Radiator width |
120 mm |
| Fan diameter |
120 mm |
| Tube length |
310 mm |
| Fan thickness |
25 mm |
| Radiator depth |
32 mm |
| Radiator height |
156 mm |
Watercooling, Ceramic Bearing, 600/1300/2000/2500 rpm, 15/21/27/30dB, 4 pin PWM
Cooling & Design

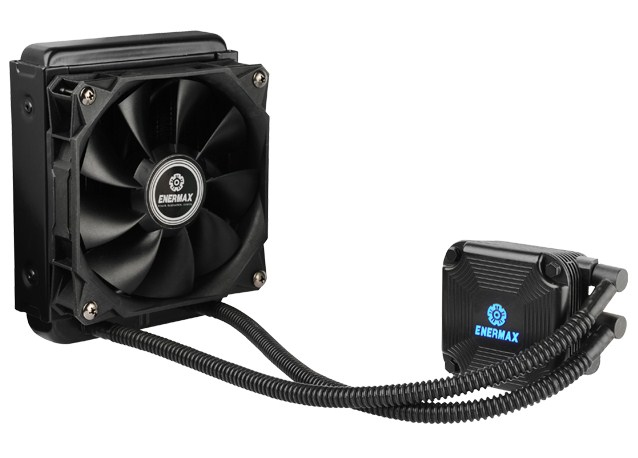

Maintenance-free Cooling System
All-in-One liquid CPU cooler with pre-filled coolant offers best usability and maximum cooling performance for powerful PC systems with multi-core CPUs.
Shunt-Channel Technology
Patented cold plate design for maximum cooling performance. The shunt inside the micro fin structure minimizes the “Boundary Layer” effect, eliminates hot spots much quicker and ensures a perfect heat dissipation.
Extruded Cold-Plate Design
Stable performance, higher heat conductivity and tightest fit to the CPU thanks to the extruded cold-plate design.
Stylish & Performance-Capable Water Block
Low operating noise and efficient cooling performance thanks to long-lasting ceramic bearing pump. Blue LED logo displays operation mode.
High Pressure Twister Fans
The new Enermax Twister Pressure fan is designed especially for the use on radiators. Due to its innovative shape and the quality structure, the Twister Pressure fans achieve an exceptional high cooling performance and generate minimum noise.
Comfort & Compatibility
Easy & Universal Mounting System
Quick & user-friendly CPU cooler mounting supports all Intel and AMD CPU: Intel® 775/1150/1155/1156/1366/2011 and AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+.
Long-lasting Tubes
High-quality tubes made of FEP (Fluorinated Ethylene Propylene) guarantee a non-permeable and long-lasting operation.
High Conductive Thermal Grease
Tube with Dow-Corning® thermal grease (TC-5121) for best thermal conduction between CPU and Water Block.
