Weight & dimensions
| Radiator depth |
27 mm |
| Radiator height |
120 mm |
| Radiator width |
273 mm |
| Fan diameter |
120 mm |
| Tube length |
310 mm |
| Fan thickness |
25 mm |
Technical details
| Noise level |
30 dB |
| Fan connector |
4-pin |
| Maximum airflow |
111 cfm |
| Minimum airflow |
28.6 cfm |
| Pump motor speed |
2500 RPM |
| Number of fans |
2 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
LGA 775 (Socket T) |
| Fan speed (max) |
2500 RPM |
| Fan speed (min) |
600 RPM |
Design
| Water block material |
Copper |
| Radiator material |
Aluminium |
| Tube material |
Plastic |
Power
| Fan voltage |
12 V |
| Pump current |
300 mA |
| Pump voltage |
12 V |
| Fan current |
0.45 A |
Watercooling, Ceramic Bearing, 600/1300/2000/2500 rpm, 15/20/27/30dB, 4 pin PWM, 2 x Fan 120mm
Cooling & Design
Maintenance-free Cooling System

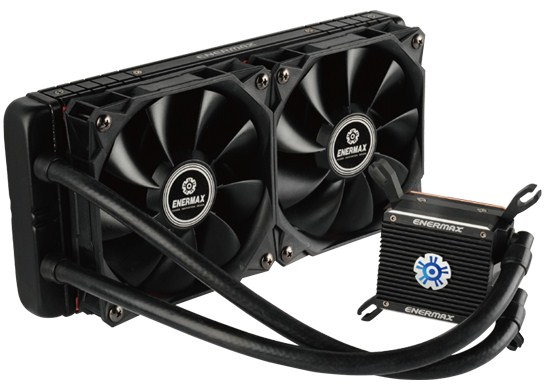

All-in-One liquid CPU cooler with pre-filled coolant offers best usability and maximum cooling performance for powerful PC systems.
Shunt-Channel Technology
Patented cold plate design for maximum cooling performance. The shunt inside the micro fin structure minimizes the “Boundary Layer” effect, eliminates hot spots much quicker and ensures a perfect heat dissipation.
High-quality Aluminium Water Block
Low operating noise and improved cooling efficiency thanks to high-quality aluminium water block with long-lasting ceramic bearing pump. Blue LED logo displays operation mode.
Radiator
Double-length Radiator
Higher heat exchange capacity thanks to double-length 240mm radiator. First choice for systems with overclocked CPU.
Innovative Radiator Structure
Insprired by CPU air coolers, the new and innovative radiator structure provides a seamless contact area and increases the heat dissipation speed.
Fans
High Pressure Twister Fans
The new Enermax Twister Pressure fan is designed especially for the use on radiators. Due to its innovative shape, the quality structure and the patented Twister Bearing technology (min. 100,000 hours MTBF), the Twister Pressure fans achieve an exceptional high cooling performance and generating minimum noise.
Adjustable Peak Speed
Easy fan speed customisation according to the system requirements. With a small switch at the back, the peak speed can be changed in three steps. The fan therefore offers three various RPM ranges: Silent Mode / Performance Mode / Overclock Mode.
Effective Fan Decoupling
The radiator is equipped with rubber stripes to reduce the fan vibration and noise generation.
Comfort & Compatibility
Easy & Universal Mounting System
Quick & user-friendly CPU cooler mounting supports all Intel and AMD CPU: Intel® 775/1150/1155/1156/1366/2011 and AMD® AM2/AM2+/AM3/AM3+/FM1/FM2.
Flexible & Long-lasting Tubes
High-quality tubes made of rubber guarantee a non-permeable and long-lasting operation combined with great flexibility.
High Conductive Thermal Grease
Tube with Dow-Corning® thermal grease (TC-5121) for best thermal conduction between CPU and Water Block.
