Weight & dimensions
| Radiator depth |
27 mm |
| Radiator height |
120 mm |
| Radiator width |
273 mm |
| Fan diameter |
120 mm |
| Tube length |
310 mm |
| Fan thickness |
25 mm |
Technical details
| Noise level |
30 dB |
| Fan connector |
4-pin |
| Maximum airflow |
111 cfm |
| Minimum airflow |
28.6 cfm |
| Pump motor speed |
2500 RPM |
| Number of fans |
2 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket 755, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, LGA 1151 (Socket H4), Socket FM1 |
| Fan speed (max) |
2500 RPM |
| Fan speed (min) |
600 RPM |
Design
| Water block material |
Copper |
| Radiator material |
Aluminium |
| Tube material |
Rubber |
Power
| Fan voltage |
12 V |
| Pump current |
300 mA |
| Pump voltage |
12 V |
| Fan current |
0.45 A |

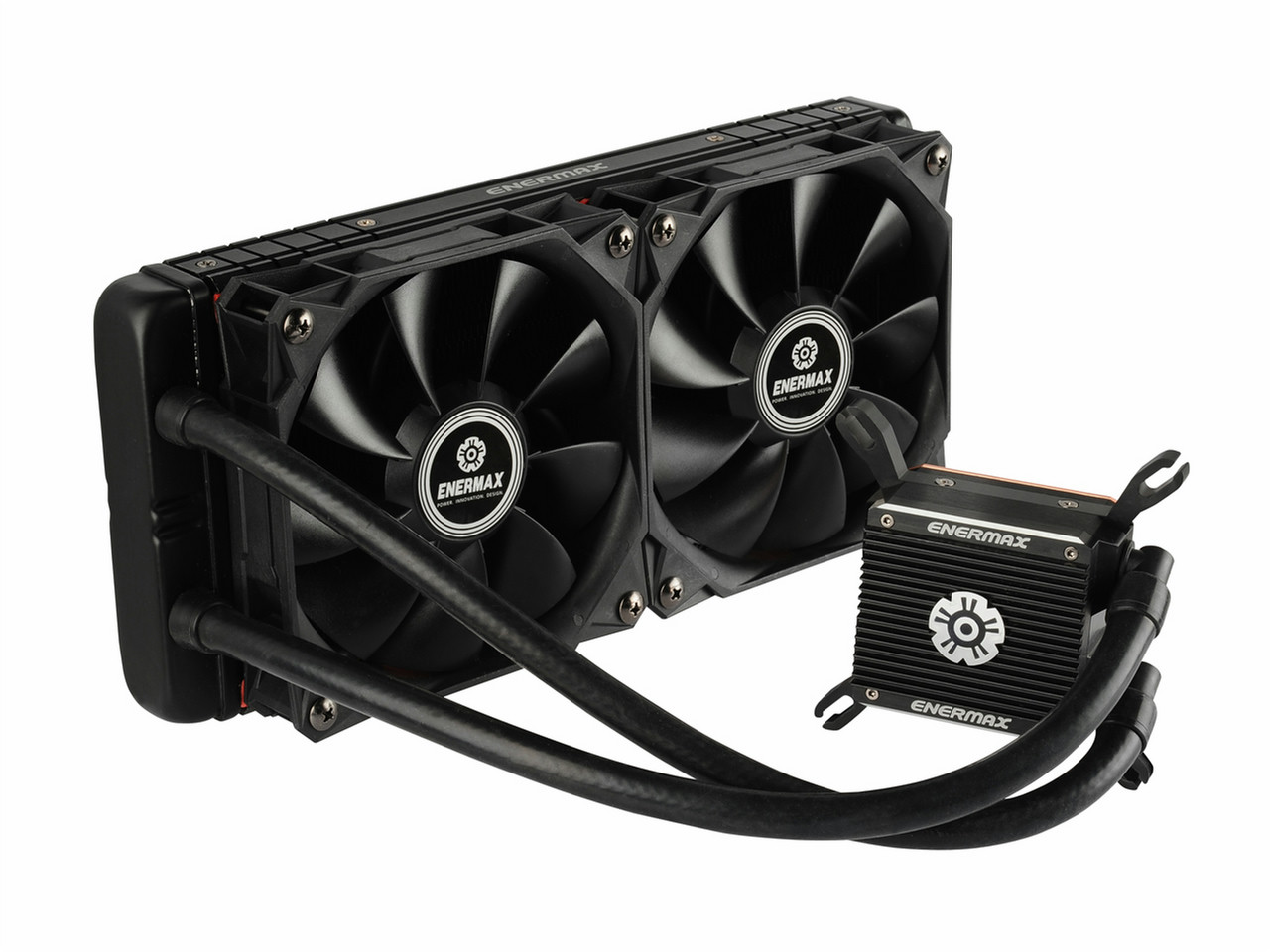

2 x 120 mm, 4-pin PWM, 600/1300/2000/2500 rpm, 15/20/27/30dB, 273 x 120 x 27 mm, 1095 g
Maintenance-free Cooling System
All-in-One liquid CPU cooler with pre-filled coolant offers best usability and maximum cooling performance for powerful PC systems.
Shunt-Channel Technology
Patented cold plate design for maximum cooling performance. The shunt inside the micro fin structure minimizes the “Boundary Layer” effect, eliminates hot spots much quicker and ensures a perfect heat dissipation.
High-quality Aluminium Water Block
Low operating noise and improved cooling efficiency thanks to high-quality aluminium water block with long-lasting ceramic bearing pump. Blue LED logo displays operation mode.
Double-thick Radiator
120mm double-thick (43mm) radiator to enhance the heat exchange capacity and improve the coolingperformance.
Double-length Radiator
Higher heat exchange capacity thanks to double-length 240mm radiator. First choice for systems with overclocked CPU.
High Pressure Twister Fans
The new Enermax High Pressure fan is designed especially for the use on radiators. Due to its innovative shape, the quality structure and the patented Twister Bearing technology (min. 100,000 hours MTBF), the High Pressure fans achieve an exceptional high cooling performance and generating minimum noise.
Adjustable Peak Speed
Easy fan speed customisation according to the system requirements. With a small switch at the back, the peak speed can be changed in three steps. The fan therefore offers three various RPM ranges: Silent Mode / Performance Mode / Overclock Mode.
Effective Fan Decoupling
The radiator is equipped with rubber stripes to reduce the fan vibration and noise generation.
