Other features
| Supported data transfer rates |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbit/s |
| Wireless standard |
IEEE 802.11a/g/b |
| Connectivity LEDs |
Y |
| Non-operating relative humidity (non-condensing) |
5 - 95% |
| Compliance industry standards |
IEEE802.11a/b/g, IEEE802.3, IEEE802.3u, IEEE802.3af, IEEE802.1f, IEEE802.1x |
Protocols
| Media access protocol |
CSMA/CA |
| Management protocols |
SNMP |
| DHCP client |
Y |
| DHCP server |
Y |
Performance
| 2.4 GHz |
Y |
| Frequency band |
2.4/5.15 GHz |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |

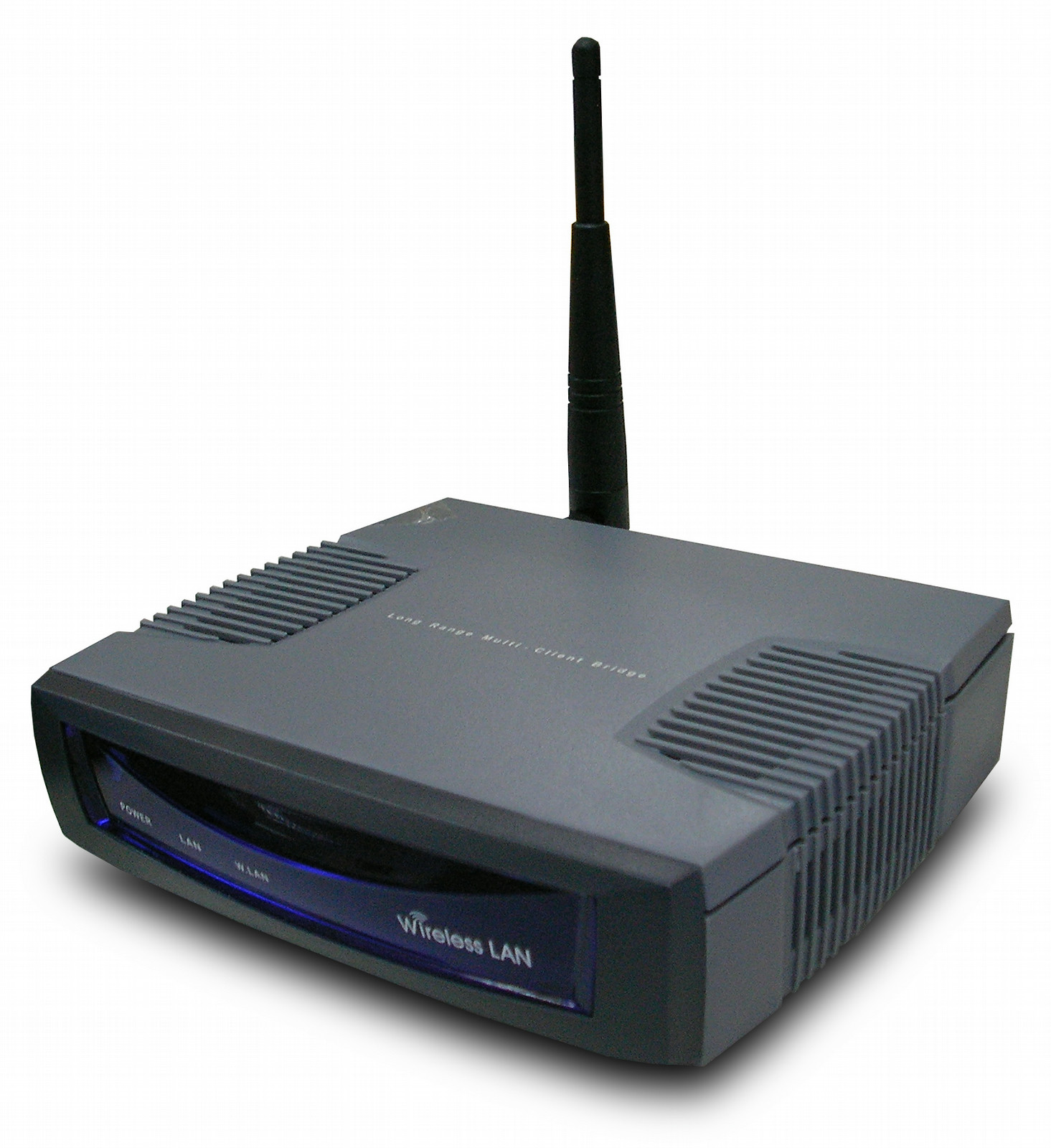

ECB-8610S AccessPoint Indoor 802.11a/b/g AP/CB/WDS 25dBm/ 28dBm Ultra Long Range
The Wireless High Power and High Gain Multi-Client Bridge/Access Point/ WDS (wireless distribution system) operates seamlessly in the dual band 2.4/5 GHz frequency spectrum supporting the 802.11b (2.4GHz, 11Mbps) and the newer, faster 802.11g (2.4GHz, 54Mbps) / 802.11a (5GHz, 54Mbps) wireless standards.
ECB-8610S have high transmitted output power and high receivable sensitivity. High output power and high sensitivity can extend range and coverage to reduce the roaming between APs to get more stability wireless connection. It also can reduce the expense of equipment in the same environment.
To protect your wireless connectivity, ECB-8610S encrypt all wireless transmissions through 64/128-bit WEP data encryption and also supports WPA2/WPA/802.1x for powerful security authentication. The MAC addresses filter lets you select exactly which stations should have access to your network.
