Performance
| Automatic channel selection |
Y |
| Channel bandwidth |
40 MHz |
| Receiver sensitivity |
802.11n 2.4 GHz\n-95dBm @ MCS0/MCS8\n-92dBm @ MCS1/MCS9\n-87dBm @ MCS2/MCS10\n-85dBm @ MCS3/MCS11\n-80dBm @ MCS4/MCS12\n-79dBm @ MCS5/MCS13\n-74dBm @ MCS5/MCS13\n-73dBm @ MCS7/MCS15\n802.11g 2.4 GHz\n-96dBm @ 6Mbps\n-93dBm @ 9Mbps\n-89dBm @ 12Mbps\n-85dBm @ 18Mbps\n-81dBm @ 24Mbps\n-79dBm @ 36Mbps\n-76dBm @ 48Mbps\n-75dBm @ 54Mbps\n802.11b 2.4 GHz\n-97dBm @ 1Mbps\n-95dBm @ 2Mbps\n-92dBm @ 5.5Mbps\n-89dBm @ 11Mbps |
| Wake-on-LAN ready |
Y |
| VLAN support |
Y |
| Transmitting power |
28 dBmW |
| Operating modes |
AP / CB / WDS |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| Auto Wireless Distribution System (WDS) |
Y |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Spread spectrum method |
DSSS |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Firmware upgradeable |
Y |
| Modulation |
16-QAM, 64-QAM, CCK, DBPSK, DQPSK, QPSK |
| Frequency band |
2.4 - 2.484 GHz |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Security
| Number of SSID support |
8 |
| MAC address filtering |
Y |
Protocols
| Management protocols |
SNMP V1/V2c, MIB I/II |
| DHCP client |
Y |
| DHCP server |
Y |
Antenna
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Transfer rate (Mbps) |
300 Mbit/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
300Mbps, 2.4GHz, WPA/WPA2, 802.1x Radius, Gigabit Ethernet, 1.36kg, white
High Power, Long-Range Coverage
500mW transmit power delivers long-range coverage.
Wireless N300 Speed
In Wireless N mode up to 300 Mbps when connected to other Wireless N devices. Complies with IEEE802.11b/g/n standards.
External Antennas Extend Wireless Connectivity
Two external 5 dBi omni-directional antennas provide outside wireless network connectivity for employees or guests with client devices such as laptop computers, tablets, and smartphones.
SSID-To-VLAN Tagging
Can be configured to broadcast up to eight SSIDs. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.
User-Friendly Installation Kit
Includes a proprietary PoE kit comprised of a PoE injector and Power Adapter. Also includes a mast mount kit with binding strap.

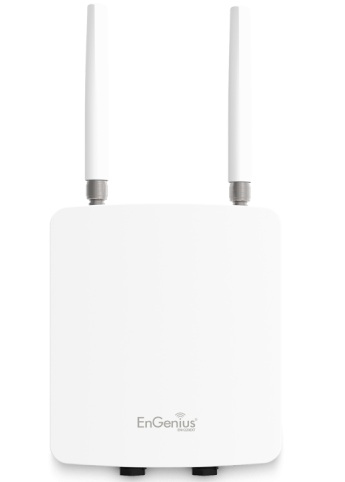

The ENH220EXT's high 500mW transmit power and high receive sensitivity make it a robust solution for extending company networks. The ENH220EXT has been engineered to withstand harsh outdoor conditions and has an IP rating of 67 and a UV coating to resist prolonged exposure to the sun. The AP also includes two Gigabit Ethernet ports, one for connecting back to the LAN network and the other for a connected device like a surveillance camera.
Unlike ordinary outdoor APs, the ENH220EXT can be used in a number of configurations and support connectivity to and from other outdoor client bridges (ENH210) in multiple-building campus deployments. The ENH220EXT also can provide wireless connectivity to 3 times as many roaming clients within its range of operation.
Compatible with EnGenius’ comprehensive family of versatile, long-range Indoor and Outdoor Wireless Access Points, Client Bridges, AP routers, EZ Controller is SNMP (v1 and v2) compliant and provides IT administrators with real-time information to ease the deployment, configuration and management of EnGenius wireless networking solutions in complex networking environments.
Extends the Network Further
Acts as an extension of an existing home or small business network for video streaming, voice & data intensive applications.
EZ Controller
EZ Controller software for configuring, managing and monitoring multiple APs from one central location. Available as a free download.
