Performance
| Channel bandwidth |
40 MHz |
| Receiver sensitivity |
-94dBm MCS0\n-76dBm MCS7\n-91dBm MCS8\n-73dBm MCS15\n-95dBm MCS0\n-77dBm MCS7\n-91dBm MCS8\n-75dBm MCS15\n-95dBm 6Mbps\n-80dBm 54Mbps\n-95dBm 1Mbps\n-91dBm 11Mbps |
| VLAN support |
Y |
| Automatic channel selection |
Y |
| Transmitting power |
27 dBmW |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Tagged VLAN |
Y |
| Operating modes |
AP/CB/WDS |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Auto Wireless Distribution System (WDS) |
Y |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Spread spectrum method |
DSSS |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Firmware upgradeable |
Y |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, QPSK |
| Web-based management |
Y |
| Frequency band |
2.4 - 5 GHz |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Security
| Number of SSID support |
16 |
| MAC address filtering |
Y |
Protocols
| Management protocols |
MIB I, MIB II, SNMP V1, V2c, V3 |
Antenna
| Antenna type |
omni-directional |
| Antenna gain level (max) |
5 dBi |
| Antenna connector type |
N |
| Antennas quantity |
4 |
| Detachable antenna(s) |
Y |
Power
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
22 W |
Packaging content
| Quick start guide |
Y |
| Mounting kit |
Y |
Additionally
| Transfer rate (Mbps) |
300 Mbit/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

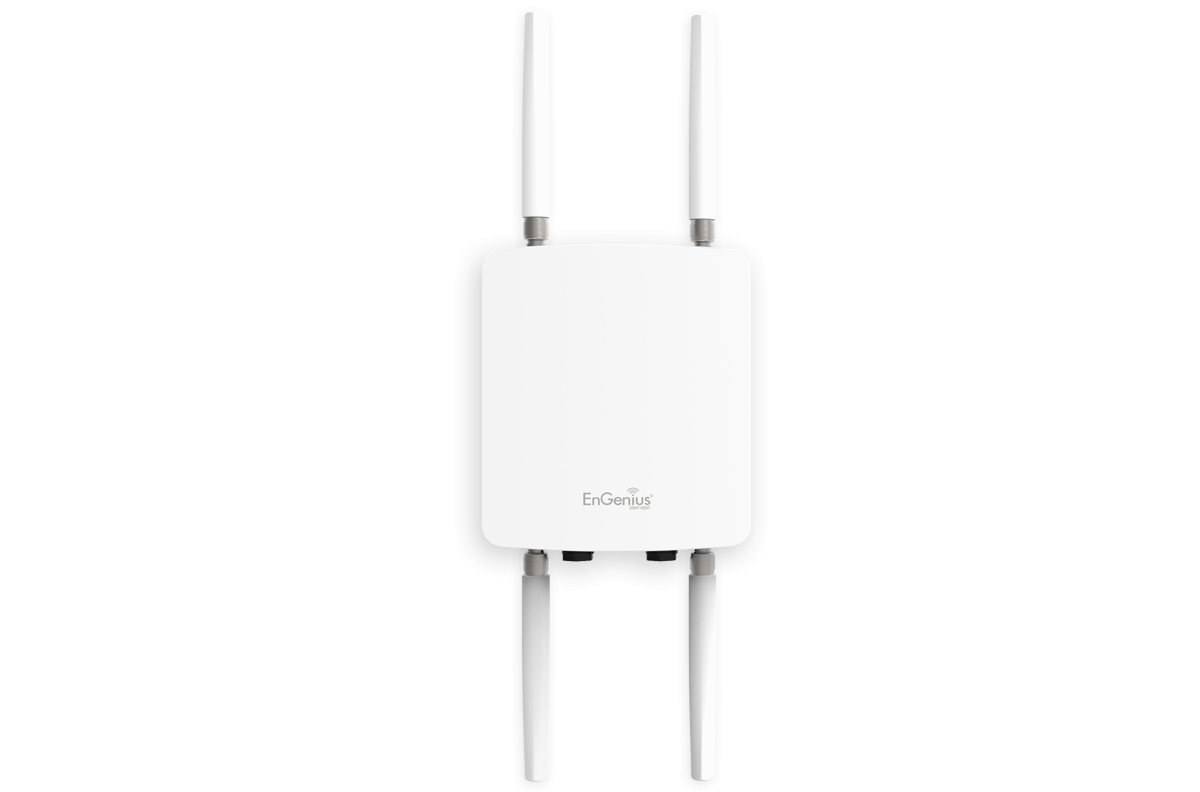

2.4/5 GHz, 802.11 a/b/g/n, 300 Mbps, 128MB RAM, 16MB Flash, 5 dBi, Gigabit Ethernet, 1795g, White
- High Power, Long-Range Coverage;
- Dual Band N600 Wireless Speeds;
- Supports Separate Mode Configuration per Frequency Band;
- Gigabit Ethernet Port;
- 4 High-Gain External Antennas;
- SSID-to-VLAN Tagging.
High Power, Long Range Coverage
Up to 500mW high transmit (TX) power for longer range signal coverage.
Dual Band N600 Wireless Speeds
Complies with IEEE802.11n standard with up to 300Mbps data rate on both the 2.4GHz and 5GHz frequency bands.
Supports Separate Mode Configuration
5 GHz frequency band can be configured as a backhaul for multiple ENH710EXT deployments in a campus environment.
Gigabit Ethernet Port
Provides high-speed connectivity to an existing wired network.
4 High Gain External Antennas
Two (2) 5 dBi high-gain omni-directional external antennas on 2.4GHz and Two (2) 7 dBi high-gain omni-directional external antennas on 5GHz.
The ENH710EXT can be configured in a number of different modes giving VARs, system integrators, IT managers, and installers the ability to configure the device for discrete functionality based on their unique network topology or scalable needs. With two onboard radios, each can be configured into different operation modes independently, thus the ENH700EXT adds an additional layer of flexibility that single-band Access Points do not offer.
In Access Point mode, the ENH710EXT expands the overall bandwidth of an outdoor Wi-Fi solution and users who wish to stream video or transfer large files now have the option to associate to any one of the AP’s up to eight configurable 5GHz SSIDs (Service Set Identifiers) – particularly useful in areas where there may be a preponderance of competing and overlapping 2.4GHz signals from Access Points and devices not affiliated with the company’s network.
Extends the Network Further
Acts as an extension of an existing home or small business network for video streaming, voice & data intensive applications.
EZ CONTROLLER
Includes EZ Controller Access Point Monitoring and Management Software. Click here for the latest version of EZ Controller
SSID-To-VLAN Tagging
Can be configured to broadcast up to four (4) SSIDs. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.
