Networking
| Port forwarding |
Y |
| Network address translation (NAT) |
Y |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Security
| DoS attack prevention |
Y |
| VPN tunnels quantity |
5 |
| Firewall |
Y |
| URL filtering |
Y |
| Filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
N |
Other features
| WLAN data transfer rates supported |
450, 1300 Mbit/s |
| Mobile network connection |
N |
| xDSL connection |
N |
| Frequency range |
2.4 - 5 GHz |
| Rack mounting |
N |
| Input current |
1.5 A |
| Frequency band |
2.4 & 5 GHz |
| USB version |
2.0 |
| USB ports quantity |
1 |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11ac |
| WLAN data transfer rate (max) |
1300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antenna
| Receive power |
-84 dBmW |
| Antenna type |
Internal |
| Antennas quantity |
6 |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| SIM card slot |
N |
Certificates
| Digital Living Network Alliance (DLNA) certified |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
Gigabit Ethernet, 802.11 a/b/g/n/ac, 1300 Mbps, 2.4/5 GHz, Black
Take more control of your digital life - for greater peace of mind.

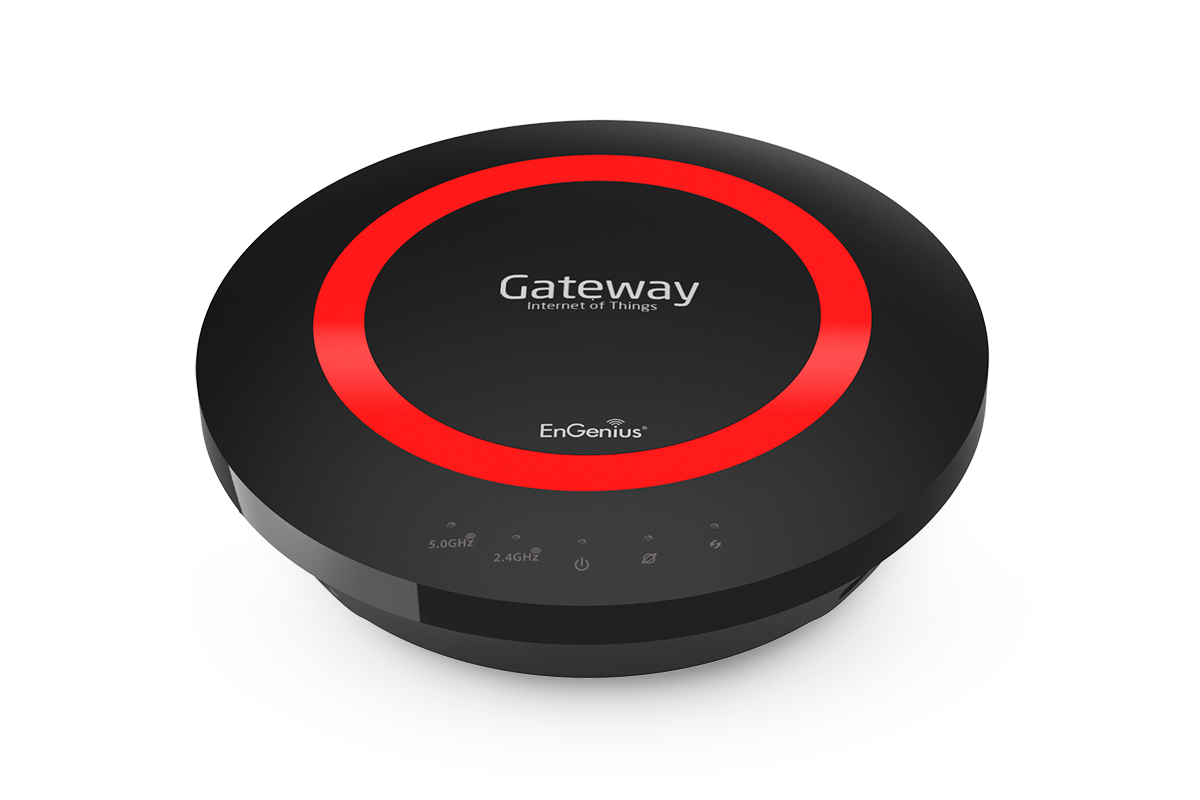

As part of the EnGenius Personal Cloud IoT (Internet of Things) Solution, the EPG5000 is an AC1750 Dual Band Wireless IoT Gateway with Gigabit ports and a USB Port that works with free downloadable EnGenius IoT mobile apps, EnGenius IP Cameras and other EnGenius accessories so users can take more control of their digital lives for greater peace of mind.
As part of the EnGenius Personal Cloud IoT (Internet of Things) Solution, the EPG5000 is an AC1750 Dual Band Wireless IoT Gateway with Gigabit ports and a USB Port that works with free downloadable EnGenius IoT mobile apps, EnGenius IP Cameras and other EnGenius accessories so users can take more control of their digital lives for greater peace of mind.
The EPG5000’s built-in 4-Port Gigabit switch is ideal for large file transfers and connecting home entertainment devices like HDTVs, Blu-ray players, set top boxes or game consoles so they can access a family’s Internet connection. Connect, stream video and transfer files at wireless speeds of up to 1300 Mbps on the EPG5000’s 5 GHz band and up to 450 Mbps on its 2.4 GHz band. The EPG5000 allows for a secure network with several security features and settings including industry standard wireless encryption such as WPA/WPA2 (Wireless Protected Access) to prevent unauthorized access to the home network; an advanced SPI (Stateful Packet Inspection) firewall to block malicious software from the Internet from accessing networked devices; MAC Address filtering to grant only known computers and devices network access; and URL filtering to block access to unwanted or offensive websites.
The EPG5000 also enables friends or visitors to gain Internet access or access to specific devices, like networked printers, while denying access to other networked computers or hard drives in the home that may contain private information via the a Guest Account feature.
To prioritize bandwidth-intensive applications like video and gaming or bandwidth sensitive applications like VoIP (Voice over IP) telephone calls for optimal connectivity whether over wired or wireless connections. The Gateway also employs intelligent QoS (Quality of Service).
Free Downloadable Personal Cloud IoT Mobile Apps
Enhance the EPG5000’s capabilities even further with EnGenius Personal Cloud IoT Mobile apps available as free downloads for iPhone, iPad or Android smartphones and tablets on the Apple® Store or Google Play™ store.
EnShare
This high-powered Gateway also includes a USB port for attaching a storage device and sharing media content in the office, home or away from the office or home to and from mobile devices such as smartphones or tablets and laptop computers with the free EnShare app for iPhone, iPad or Android smartphones and tablets.
EnTalk-Lite
Connect with family, friends, and colleagues like never before with the free EnTalk-Lite app. Capable of supporting up to 10 SIP accounts, small business users or families and friends can reroute calls over the Internet for conducting long-distance and international calls at lowered costs.
EnRoute
The free EnRoute app allows administrators to keep track of the location of business colleagues or family members who belong to a registered account on a device such as a smartphone or tablet. Features such as GPS tracking, location sharing, and parental controls allows for easier management of devices and users. Never lose track of friends or family again.
EnViewer
With the free EnViewer app, users can connect up to four EnGenius EDS1130 HD720P Wireless IP Cameras to the EPG5000 to monitor a home or small business. Alert messages can be sent to a mobile device that are triggered by the Camera’s motion-detection feature and with the Camera’s day/night capabilities a user can monitor their family, their home or their small business wherever they have an Internet connection.
