Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
450 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| System event log |
Y |
| MAC address filtering |
Y |
Other features
| xDSL connection |
N |
| Bandwidth |
2.4 GHz |
| Rack mounting |
N |
| Frequency band |
2.4 & 5 GHz |
| USB ports quantity |
1 |
Antenna
| Antenna type |
external |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
2 |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

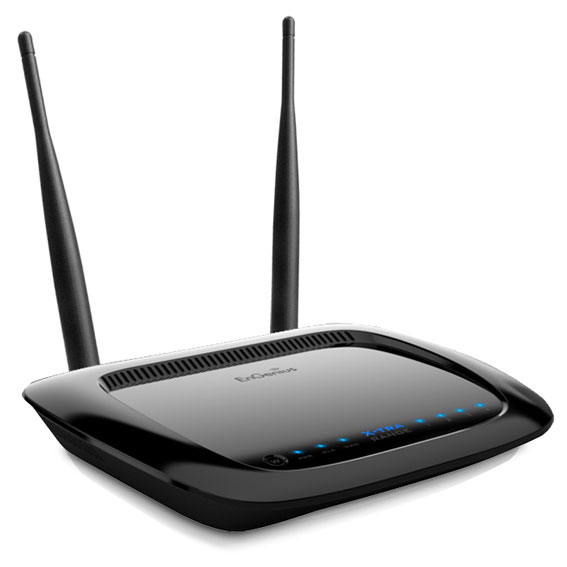

ESR750H, 300 Mbps + 450 Mbps, 2.4/5.0 GHz, 4 x Gigabit Lan RJ-45 + 1 x Gigabit WAN RJ-45, 0.7kg, Black
The Engenius XtraRange ESR750H is a Dual-Band Concurrent (300 + 450 Mbps) Wireless-N Router with a built-in 4-Port Gigabit switch and a Gigabit WAN port, and a built-in USB port to support a USB hard drive, USB printer or USB-enabled speaker for streaming music from an iTunes-enabled device. This high-powered Wireless-N router offers robust connectivity and performance for computers, smartphones, tablet PCs and home entertainment devices in a home or small office.
The ESR750H’s high transmit power capability, up to 100mW (20dBm) is designed to deliver extended range and expanded coverage so your family can connect more devices throughout and around your home and take advantage of all the free and subscription-based Internet services now available on Blu-ray players, game consoles, set top boxes, HDTVs and more. Users can also connect a USB hard drive to share its content throughout the home. This intelligent router also includes shAir which enables users to connect a USB-enabled speaker to the router’s USB port for streaming music from iTunes-enabled devices like iPhones, computers, and AppleTVs.
The ESR750H comes with the detachable 5dBi high gain external antennas and is embedded with internal high gain antennas to extend wireless signal range and provide greater coverage and better connectivity to remote devices.
The ESR750H also supports several security features and settings including industry standard wireless encryption, such as WEP, WPA/WPA2 to prevent unauthorized access to the network; an advanced SPI (Stateful Packet Inspection) firewall to block malicious software from the Internet from accessing networked devices; MAC Address filtering to grant only known computers and devices network access; and URL filtering to block access to unwanted or offensive websites.
Users can also enable up to four separate and discrete SSIDs (Service Set Identifiers) or ways to access the network. This gives families the ability to offer friends or visitors Internet access or access to specific devices, like printers, while protecting other networked computers or hard drives in the home that may contain private information.
This smart router also employs intelligent QoS (Quality of Service) to prioritize bandwidth-intensive applications like HD video and gaming or bandwidth sensitive applications like VoIP (Voice over IP) telephone calls for optimal connectivity.
Differentiators:
- 100mW high output power doubles wireless range with better coverage
- Built-in 4-Port Gigabit Switch to connect Blu-ray players, Set Top Boxes, DVRs, Game Consoles and HDTVs
- Gigabit WAN port for faster uploads and downloads to and from the Internet
- Built-in USB port to share a USB hard drive or printer; or for streaming iTunes music
- Four Guest Access Login Options
- WPA / WPA2 encryption to help secure the wireless network
- QoS (WMM) optimizes bandwidth performance for streaming media
- Detachable 5dBi high gain antennas for longer range and greater coverage. It also allows for end-user upgrade.
