Performance
| Internal memory |
128 MB |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| 5 GHz |
Y |
| Operating modes |
Access Point |
| Wireless isolation |
Y |
| Transmitting power |
15 dBmW |
| VLAN support |
Y |
| Channel bandwidth |
40 MHz |
| Flash memory |
16 MB |
| Modulation |
CCK, 64-QAM, DQPSK, OFDM, BPSK, DBPSK, QPSK |
| 2.4 GHz |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.4/5 GHz |
| Ethernet LAN data rates |
10, 1000, 100 Mbit/s |
| Firmware upgradeable |
Y |
Protocols
| Management protocols |
SNMP v1/v2c, MIB I/II |
| DHCP server |
Y |
| DHCP client |
Y |
Security
| Number of SSID support |
16 |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Antenna
| Integrated antenna |
Y |
| Antennas quantity |
6 |
| Antenna gain level (max) |
5 dBi |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Power
| Input frequency |
50/60 Hz |
| Input current |
2 A |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
22.8 W |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1300 Mbit/s |
2.4/5 GHz, 802.11 a/ac/b/g/n, 1300 Mbps, 128MB, Flash 16MB, Gigabit Ethernet, RJ-45, 362.8g, White
Operates as a stand-alone Access Point or part of the EnGenius Neutron Series Wireless Management solution

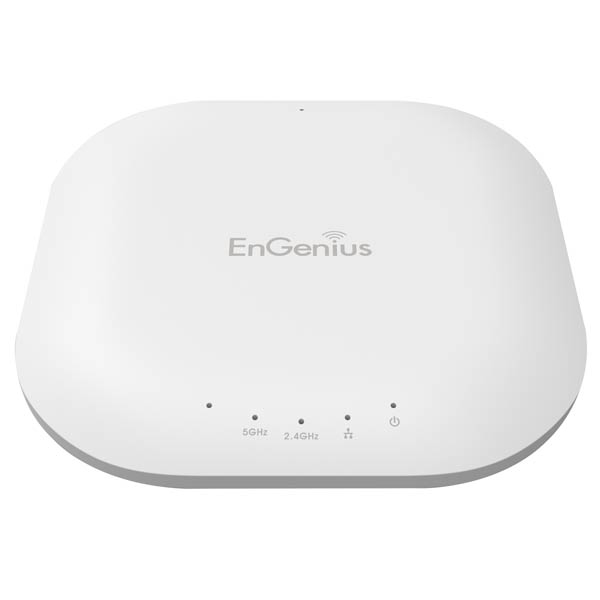

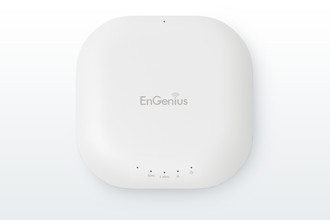

The EWS360AP is a high-powered, long-range, ceiling-mount or desktop Dual-Band Wireless AC1750 Indoor Access Point that functions as a stand-alone Access Point or as part of an EnGenius Neutron Series Wireless Management solution for expanding user capacity and extending networks wirelessly within large buildings. It features a high transmit RF power on each frequency band for wall, floor and ceiling penetrating connectivity.
The EWS360AP can operate as a stand-alone Access Point connecting to third-party PoE-capable switches but more control and versatile management of the Access Point is achievable when it is part of an EnGenius Neutron Series Wireless Network Management solution because the AP includes firmware that enables it to be immediately discovered, configured, monitored and managed from a compatible Neutron Series PoE+ Switch (EWS5912FP, EWS7928FP or EWS7952FP). This capability enables IT managers to deploy and manage up to 50 EWS360APs from a Neutron Series Switch allowing for simplified management from one browser-based interface including simultaneous firmware upgrades, clustering, traffic monitoring, bandwidth steering and many other features that can be reset or reconfigured from the convenience of the IT manager’s desktop.
Operating in both the 2.4 GHz and 5 GHz frequency spectrums and supporting 802.11a/b/g/n and ac (draft) standards the EWS360AP features wireless speeds up to 450 Mbps on the 2.4 GHz radio and up to 1300 Mbps on the 5 GHz radio, a Gigabit port for connecting to 802.3at-capable PoE Switches, and an enhanced receive sensitivity MIMO (Multiple In/Multiple Out) antenna array. As a result, the EWS360AP is ideal for spacious environments such as large homes, small and medium-sized businesses, multiple-floor offices, hotels, hospitals, and other multi-floor buildings.
As the EWS360AP is designed for deployments on ceilings where power outlets may be scarce, it also comes equipped with PoE (Power-over-Ethernet) IEEE 802.3at for use with an 802.3at-capable PoE injector or 802.3at-capable PoE Switches, drawing up to 22 watts of power.
Paired with other Neutron Series Access Points and Switches, the EWS360AP helps to make managing a network easier with its standardized GUI. To protect sensitive data during wireless transmissions, the EWS360AP offers different industry-standard encryption settings for wireless transmissions, including WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA Enterprise, WPA2 Enterprise, and WPA2 Mixed Enterprise.. It also includes MAC address filtering to allow network administrators to offer network access only to verified computers and devices based on their MAC addresses.
