Data transmission
| MAC address table |
8.000 entries |
| Maximum data transfer rate |
1 Gbit/s |
Operational conditions
| Heat dissipation |
441 BTU/h |
Protocols
| Data link protocols |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols |
Power over Ethernet, VLAN support |
| Management protocols |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
Other features
| Networking features |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t |
| Expansion slots |
4x SFP GBIC |
Design
| Safety |
UL 60950, CSA 60950, EN 60950, EN 60825 IEC 60950 |

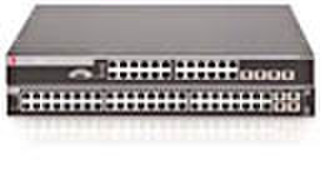

48-Port L2 10 100 1000 Ethernet Switch
This switch features 48 ports of 10/100/1000 connectivity, four uplink ports supporting SFP (Small Form-factor Pluggable) GBICs and two integrated stacking ports. Ports 45 thru 48 have the flexibility to be mapped as either 10/100/1000 ports or as optical Gigabit Ethernet ports with the installation of a fiber transceiver in the appropriate SFP socket.
