Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
24 Gbit/s |
| Throughput |
17.86 Mpps |
Operational conditions
| Heat dissipation |
107.5 BTU/h |
Networking
| Port mirroring |
Y |
| IGMP snooping |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| 10G support |
N |
Security
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| Combo SFP ports quantity |
2 |
Performance
| Internal memory |
256 MB |
| Flash memory |
32 MB |
| Stackable |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |

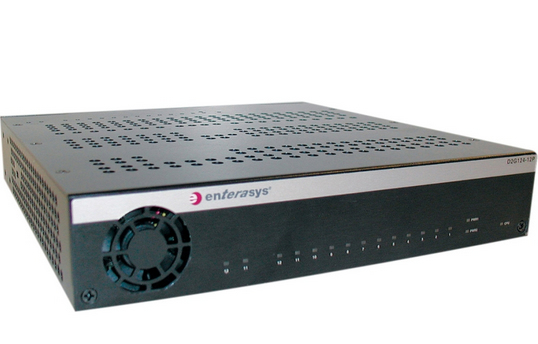

12-port 10/100/1000 PoE, 2 x SFP combo ports
Gigabit Ethernet Workgroup L2 Switch with Optional Policy Support
The Enterasys D2 is a high-performance Gigabit Ethernet workgroup switch with a high tolerance for environmental temperatures up to 140°F / 60°C. With fans that only operate at extreme temperatures, the D2’s very quiet design makes it an ideal solution for classrooms and conference rooms, as well as warm locations with limited ventilation. By providing LEDs on the front, back, and top of the switch, the D2 offers very flexible mounting options (rack, wall, desktop, or under-tabletop), including an integral Kensington lock and an optional lock box for secure mounting.Along with a switch capacity of 24 Gbps, the D2 provides 12 fixed 10/100/1000Base-T Ethernet ports; two of these ports are combo ports and can be accessed via either 10/100/1000Base-T or 1Gbps Small Form Factor Pluggable (SFP) connectors. In order to provide a reliable, high-availability network, both the standard and Power over Ethernet (PoE) D2 models support redundant, external power bricks as well as Link Aggregation Groups (LAGs) for scalable, redundant uplinks.In conjunction with its non-blocking architecture, the D2’s robust Quality of Service (QoS) features enable strong support for converged multimedia networks, including Voice over IP, video, as well as all types of data-intensive applications. The D2’s highly customizable Layer 2/3/4 packet classification capabilities together with its intelligent queuing mechanisms ensure that mission-critical applications receive prioritized access to network resources.In order to sustain a secure, feature rich and cost-effective network well into the future, the D2 comes with a lifetime warranty.
