Other features
| Authentication method |
802.1x |
| Electromagnetic emissions |
47 CFR Parts 2 & 15, CSA C108.8, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 22, VCCI V-3 |
| Expansion slots |
1x Network Expansion Module (NEM) |
| Input frequency |
50/60 Hz |
| Networking features |
Fast Ethernet |
Design
| Safety |
UL160950, CSA 60950, EN 60825, EN 60950, IEC 60950 |
Power
| Input voltage |
100 - 125/200 - 250 V |
Data transmission
| Switching capacity |
9 Gbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| Number of VLANs |
4094 |
| Throughput |
6.5 Mpps |
Networking
| IGMP snooping |
Y |
| Link aggregation |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
49 |
Performance
| Internal memory |
256 MB |
| Flash memory |
32 MB |
| Stackable |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

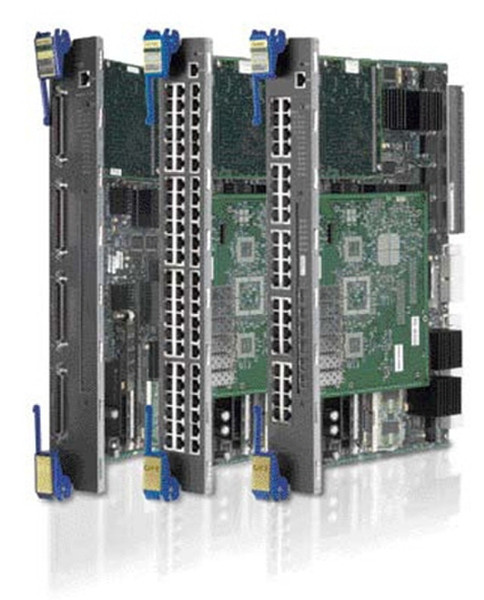

GOLD DFE with 48 100Base-FX ports via Multi mode Fiber MTRJ & 1 Network Expansion Module (NEM) slot
-High-density, cost effective 10/100, 10/100/1000, 100FX and Power-over-Ethernet Modules.
-Optimized for enterprise edge network deployments.
-Multiple authentication techniques enable user/device-aware networking.
-Enables simplified network design to reduce maintenance & service costs.
-Backplane architecture provides a total of 1.68 Terabits per second of switching capacity.
Optimized for the network edge, the Gold Distributed Forwarding Engine (DFE) modules for the Matrix® N-Series are designed specifically for high-density 10/100, 10/100/1000 and 100FX network edge applications. These DFEs provide a very cost-effective and flexible option for customers deploying switching at the edge of the network.
Gold DFEs deliver scalable performance and flexibility to ensure comprehensive switching, routing, Quality of Service, security, and traffic containment unmatched by competitive solutions.
Gold DFEs are supported in the Matrix N1, N3, N5 and N7 platforms for guaranteed investment protection across the entire series. Through a flexible, optional license upgrade, these modules support 1+1 redundancy and advanced routing for mission-critical network applications.
