Other features
| Expansion module type |
1H-8FX/1H-16TX/1G-2TX/1G-2MGBIC |
| Non-operating relative humidity (non-condensing) |
5 - 90% |
| Host ports |
4 |
Operational conditions
| Heat dissipation |
156 BTU/h |
Data transmission
| Switching capacity |
24 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
4094 |
| Throughput |
16 Mpps |
Networking
| IP routing |
Y |
| Full duplex |
Y |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
6 |
System requirements
| Media types supported |
6 mini-GBIC ports/, 3 expansion slots |
| Minimum RAM |
64 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Performance
| Flash memory |
8 MB |
| Stackable |
N |

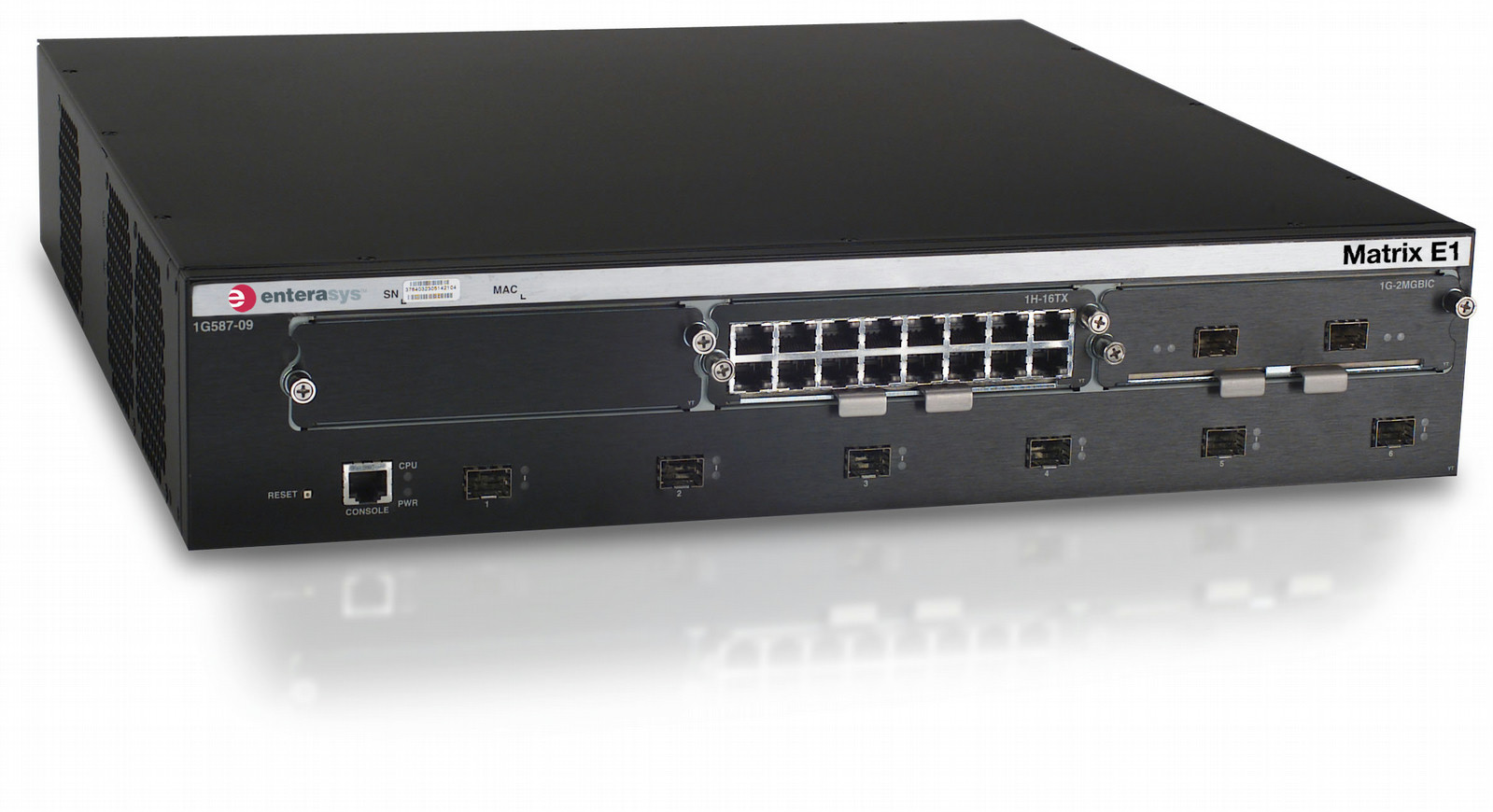

1G587-09 Matrix E1 Gigabit Distribution Switch with 6 MGBIC, 3 EXP SL.
Ideal for networks that require high-performance, high-bandwidth connections and robust multilayer features, the Matrix E1 Gigabit Distribution Switch (GDS) can handle the demanding requirements of bandwidth-intensive enterprise applications such as videoconferencing, distance learning, enterprise resource planning, and disaster recovery as well as simultaneous intranet and Internet connectivity— all at wire speed.
Whether you’re upgrading the network infrastructure or expanding at the distribution layer, the Matrix E1 GDS is ideally suited for wiring closet aggregation or for small to mid-sized network backbones. Wire-speed performance and industryleading features allow seamless integration into any small or medium business, or large enterprise network.
The Matrix E1 GDS is a 6-port Gigabit Ethernet switch with three expansion slots, which accept a variety of copper and fiber Fast and Gigabit Ethernet expansion modules. All features and functionality are supported on all ports, and any combination of expansion modules may be installed in the base system.
Multilayer, "Fixed-Modular" Switch for Enterprise Wiring Closet Aggregation
- Ideal for networks that require high-performance, high-bandwidth connections and robust multilayer features, the Matrix E1 Gigabit Distribution Switch (GDS) can handle the demanding requirements of bandwidth-intensive enterprise applications such as videoconferencing, distance learning, enterprise resource planning, and disaster recovery as well as simultaneous intranet and Internet connectivity— all at wire speed.
- Whether you’re upgrading the network infrastructure or expanding at the distribution layer, the Matrix E1 GDS is ideally suited for wiring closet aggregation or for small to mid-sized network backbones. Wire-speed performance and industryleading features allow seamless integration into any small or medium business, or large enterprise network.
- The Matrix E1 GDS is a 6-port Gigabit Ethernet switch with three expansion slots, which accept a variety of copper and fiber Fast and Gigabit Ethernet expansion modules. All features and functionality are supported on all ports, and any combination of expansion modules may be installed in the base system.
Mixed fixed-modular platform
- 6 Gigabit Ethernet ports via mini-GBICs with 3 modular expansion slots
- Up to 12 fiber Gigabit Ethernet or half copper/half fiber Gigabit Ethernet configuration
Line-rate performance
- 24 Gbps switching capacity; exceeds 16 Mpps switching and routing throughput
Switching and routing support
- Spanning Tree; Rapid Reconfiguration Spanning Tree; IEEE 802.1Q VLANs
- IPv4 Routing with RIP, OSPF and VRRP; IP Multicast with IGMP and DVMRP; Link Aggregation; Port Mirroring
Superior Quality of Service
- IEEE 802.1p with 4 hardware priority queues/port
- Layer 2, 3, 4 traffic classification
- Hardware-based rate limiting; ToS rewrite support
Simplified management
- CLI or embedded web server; NetSight; RMON
- SNMPv3, Telnet Access via SSHv2
Industry-leading security
- 802.1X and MAC-based authentication, MAC-based port locking and RADIUS
- DoS prevention and enhanced ACL support
