Other features
| Expansion module type |
1H-8FX/1G-2TX/1G-2MGBIC |
| Non-operating relative humidity (non-condensing) |
5 - 90% |
Operational conditions
| Heat dissipation |
157 BTU/h |
Data transmission
| Switching capacity |
10 Gbit/s |
| Maximum data transfer rate |
10 Gbit/s |
| Number of VLANs |
4094 |
| Throughput |
6.5 Mpps |
Networking
| Port mirroring |
Y |
| Link aggregation |
Y |
| DHCP client |
Y |
| Full duplex |
Y |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
System requirements
| Media types supported |
24 10/100 RJ45 ports/1 expansion slot |
| Minimum RAM |
64 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Performance
| Flash memory |
8 MB |
| Stackable |
N |
Additionally
| Wireless technologies |
Wired |

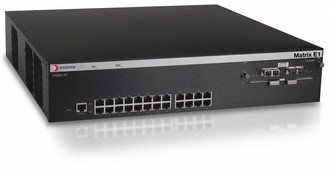

Matrix E1 Workgroup Switch with 24 10/100 RJ45, 1 ESP SLOT, Multilayer, Fixed-Modular Switch for the Enterprise Edge.
- Ideal for networks that require high-performance, high-bandwidth connections and robust multilayer features, the Matrix E1 Workgroup Switches (WS) can handle the demanding requirements of bandwidth intensive, enterprise applications such as videoconferencing, distance learning, enterprise resource planning, and disaster recovery as well as simultaneous intranet and Internet connectivity—all at wire speed.
- Whether you’re upgrading the network infrastructure or expanding it at the edge, the Matrix E1 WS are ideally suited for the wiring closet or data center. Wire-speed performance and industry-leading features allow seamless integration into any small or medium business, or large enterprise network.
- The Matrix E1 WS-24 is a 24-port 10/100 switch with one expansion slot, the Matrix E1 WS-48 is a 48-port 10/100 switch with three expansion slots.
Mixed fixed-modular platform
- 24 fixed 10/100 ports with 1 modular expansion slot (WS-24)
- 48 fixed 10/100 ports with 3 modular expansion slots (WS-48)
Line-rate performance
- 24 Gbps switching capacity; exceeds 6.5 Mpps switching and routing throughput (WS-24)
- 24 Gbps switching capacity; exceeds 16 Mpps switching and routing throughput (WS-48)
Switching and routing support
- IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Reconfiguration Spanning Tree; IEEE 802.1Q VLANs
- IPv4 Routing with RIP, OSPF and VRRP; IP Multicast with IGMP and DVMRP; Link Aggregation; Port Mirroring
Superior Quality of Service
- IEEE 802.1p with 4 hardware priority queues per port; Layer 2, 3, 4 traffic classification; hardware-based rate limiting; ToS rewrite support
Simplified management
- Industry-standard CLI or embedded web server; NetSight; RMON
- SNMPv3, Telnet Access via SSHv2 encryption
Industry-leading security
- 802.1X and MAC-based authentication, MAC-based port locking and RADIUS
- DoS prevention and enhanced ACLs support
