Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
17.6 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of queues |
8 |
Other features
| Electromagnetic emissions |
47 CFR Parts 2 & 15, CSA C108.8, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 22, VCCI V-3 |
Management features
| MIB support |
RFC 2819 - RMON-MIB, RFC 1213 - RFC1213-MIB/MIB II, RFC 1493 - BRIDGE-MIB, RFC 1643 - Ethernet-like MIB, RFC 2233 - IF-MIB, RFC 2674 - P-BRIDGE-MIB, RFC 2674 - QBRIDGE-MIB VLAN Bridge MIB, IEEE 802.1X MIB - Port Access, RFC 2620 - RADIUS Accounting Client MIB, RFC 2618 - RADIUS Authentication Client MIB, RFC 2933 - IGMP MIB, RFC 3580 - Enterasys Entity MIB |
| Quality of Service (QoS) support |
Y |
Networking
| Link aggregation |
Y |
| Flow control support |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
Design
| Safety |
UL 60950, CSA 60950, EN 60950, EN 60825, IEC 60950 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

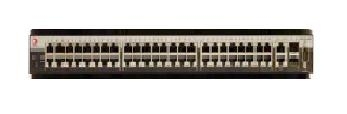

SecureStack A2 with 48 10/100 ports via RJ45, two Mini-GBIC ports and two fixed 10/100/1000 stacking/uplink ports
High-Performance and High-Availability Stacking
The SecureStack A2 stackable switch family delivers cost-effective Layer 2 switching in a single stack with up to 384 10/100 ports with 16 gigabit uplinks. Reliability and availability are assured with support for Closed Loop Stacking, redundant core connections, redundant power options and redundant stack management.
Each SecureStack A2 switch has two mini-GBIC (SFP) ports and two fixed 10/100/1000 ports that can be used as standard Ethernet uplinks but can also be used as stacking ports that support up to 2 Gbps of bi-directional bandwidth between any two adjacent switches. No additional stack module is required to stack the switches. A single stack can be comprised of any combination of SecureStack A2 switches allowing a mixture of 24- and 48-port 10/100, 100Base-FX and Power-over-Ethernet ports to be linked to the network core via copper, multimode fiber and/or single-mode fiber Gigabit. Closed Loop Stacking is implemented, which assures that a single switch or cable connection failure in the stack will not impact the overall stack operation.
The SecureStack A2 stack auto-configures, allowing stack switch units to be added or removed with minimal packet interruption. Up to eight SecureStack A2 switches can be supported in a stack with a single IP address for complete stack management. Redundant stack management is supported by assigning a primary and multiple secondary stack managers.
Features & Benefits
High performance, high density
- Up to 384 10/100 ports 16 gigabit uplinks in a single stack
High-availability services
- IEEE 802.3ad Link Aggregation.
- Ethernet Flow Control.
- IGMP snooping v1 & v2.
- Closed Loop Stacking.
- Optional redundant power.
- Redundant stack management.
Advanced Quality of Service
- Extensive traffic classification capabilities.
- Ingress rate limiting.
- Extensive VLAN support.
Sophisticated Security
- IEEE 802.1x Authentication.
- SSH and RADIUS.
