Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
17.6 Gbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
| Number of VLANs |
1024 |
| Number of queues |
8 |
| Throughput |
13.1 Mpps |
Other features
| Authentication method |
Port & MAC 802.1x |
| Electromagnetic emissions |
FCC 15 (A), ICES-003 (A), BSMI, VCCI V-3, AS/NZS CISPR 22 (A), EN 55022 (A), EN 55024, EN 1000-3-2, EN 61000-3-3 |
| Input frequency |
50/60 Hz |
| Networking features |
Ethernet, Fast Ethernet |
Operational conditions
| Heat dissipation |
1451 BTU/h |
| Operating temperature (T-T) |
32 - 122 °F |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Rate limiting |
Y |
| Link aggregation |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| Spanning tree protocol |
Y |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
Design
| Safety |
UL 60950-1, CSA 22.1 60950, EN 60950-1, & IEC 60950-1 |
Power
| Input voltage |
100 – 240 V |
| Input current |
7.5 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

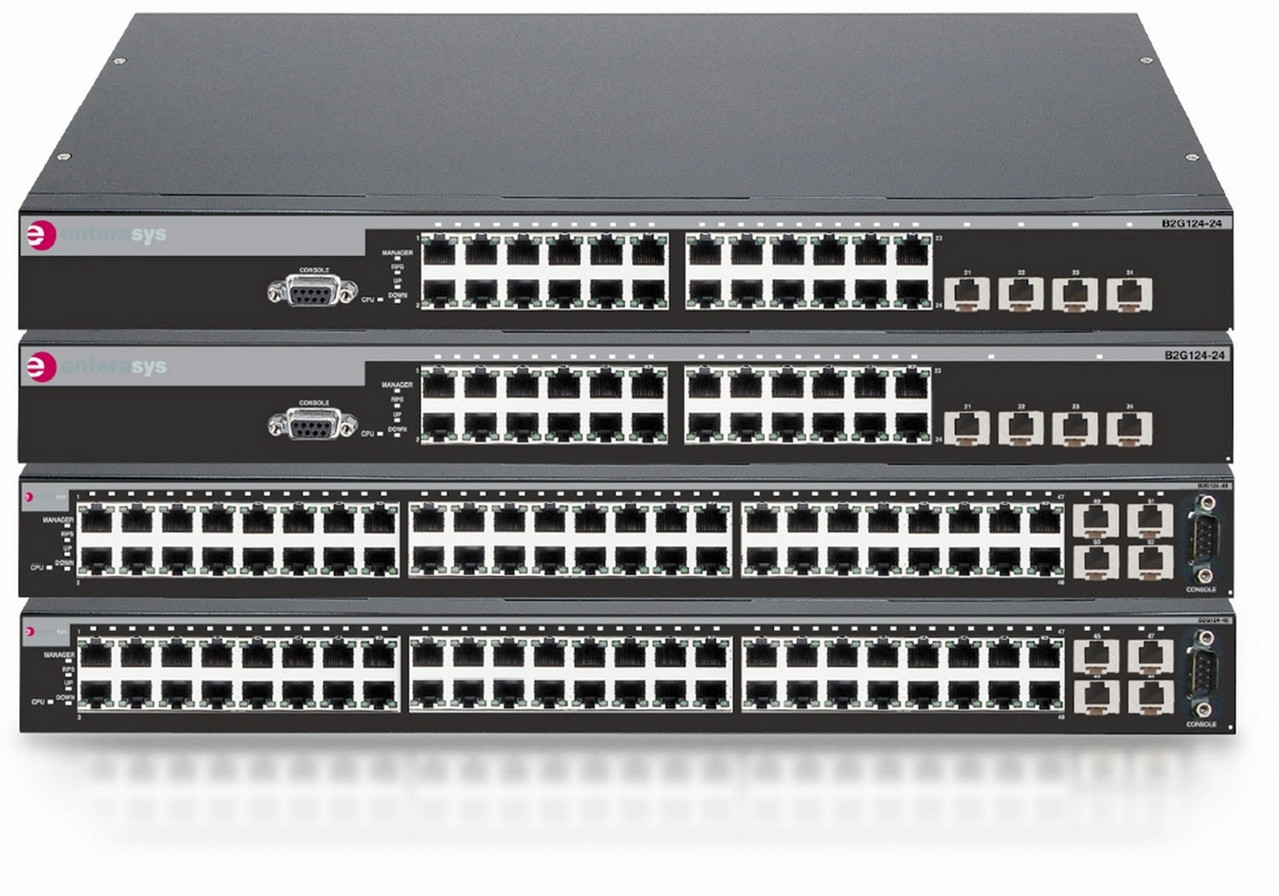

SecureStack B2 Switch with 48-Port L2 10/100 via RJ45 Power Over Ethernet
Policy-based L2 switching with high-availability stacking
Why buy a regular switch when you can buy an Enterasys SecureStack™ for less? The SecureStack™ B-series stackable switch family delivers cost-effective Layer 2 switching with embedded security support for 802.1x, Web and MAC authentication, RFC 3580 VLAN quarantine, and support for Secure Networks™ policy through an optionally purchased upgrade license. Advanced QoS capabilities deliver L2/L3/L4 classification, bandwidth flow control and traffic prioritization to support IP telephony (VoIP) and IP Multicast (IPMC) voice/video/data convergence applications. High-availability features include support for closed-loop stacking, redundant power, power over Ethernet (PoE), fault-tolerant management, rapid re-convergence (802.1w RSTP), and link-aggregation (802.3ad). Closed-loop stacking assures that a single switch or cable connection failure in the stack will not impact the overall stack operation.
Up to eight (8) SecureStack B-Series switches can be supported in a single stack with one IP address for complete stack management. A single stack supports up to 384 10/100/1000Mbps ports with 32 gigabit uplinks.
