Endurance
Ribbon life |
2 million characters |
Print head life |
200 million characters |
Mean time between failures (MTBF) |
6000 h |
Printing
Built-in barcodes |
Code 39, POSTNET, UPC-A, UPC-E |
Maximum number of copies |
5 copies |
Maximum print speed |
360 cps |
Power
Power consumption (typical) |
20 W |
Power consumption (standby) |
4.8 W |
Ports & interfaces
Standard interfaces |
Parallel, USB 2.0 |
Print quality
Maximum printing width (columns) |
80 |
Maximum print size |
254 x 558.8 mm |
Operational conditions
Operating relative humidity (H-H) |
10 - 80% |
Weight & dimensions
Depth |
306 mm |
Weight |
3500 g |
Width |
386 mm |
Height |
185 mm |
Additionally
Colour of product |
Grey |
Colour |
N |
Operating temperature range (T-T) |
5 - 35 °C |

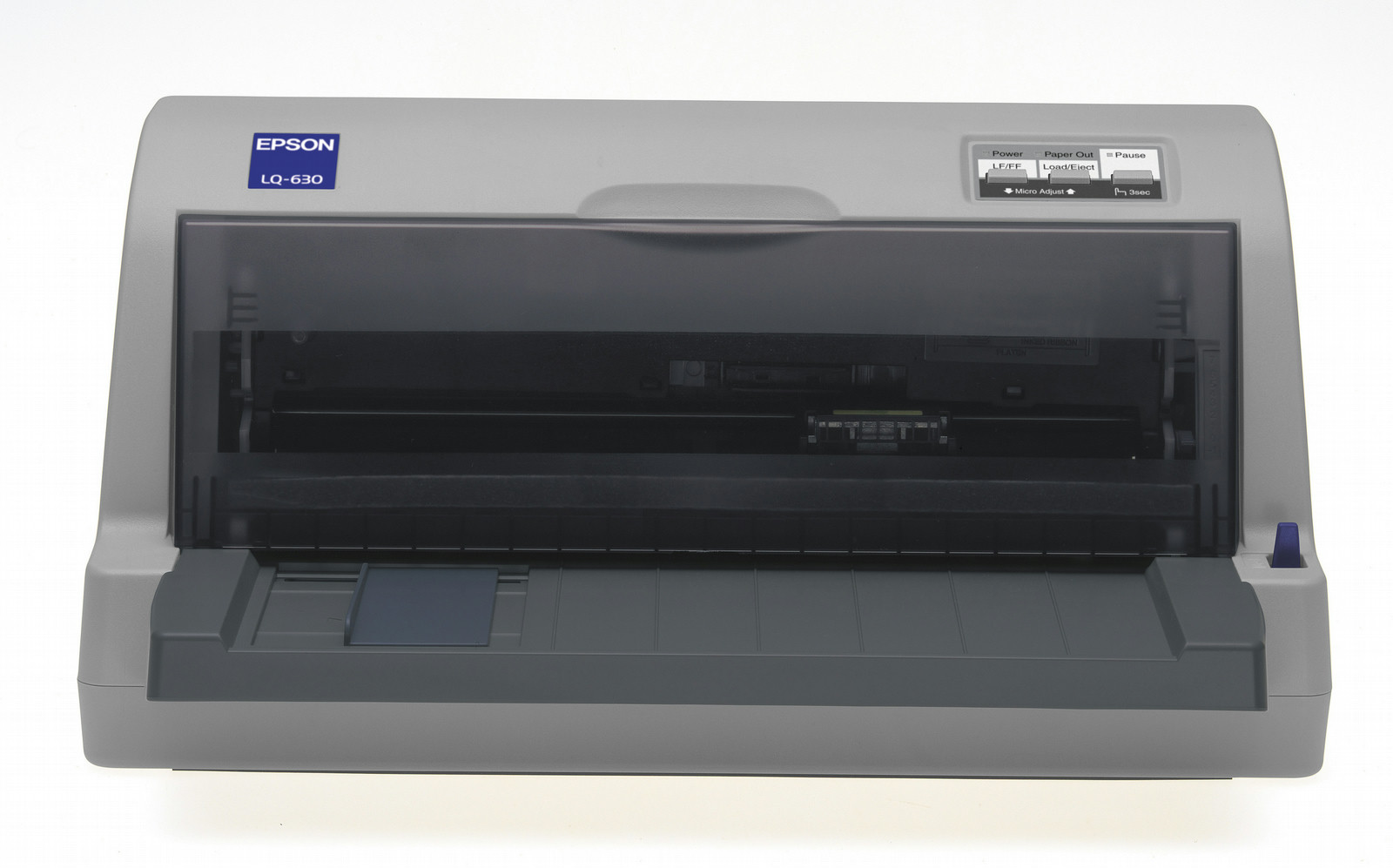

Impact dot matrix, 24 pins, 80 columns, 24 Needles, 360x180 DPI, USB 2.0, Parallel, 20W, 3.5 kg
LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer's flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors' surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.
