Paper handling
| Auto Document Feeder (ADF) media weight |
50 - 209 g/m² |
| Maximum scan area (ADF) |
215.9 x 914.4 mm |
| Letter |
Y |
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Plain paper |
Input capacity
| Auto document feeder (ADF) input capacity |
50 sheets |
Performance
| Scan drivers |
ISIS, TWAIN |
| Daily duty cycle (max) |
3000 pages |
| Scan to |
Cloud, File |
| Scan file formats |
PDF |
| Light source |
RGB LED |
Ports & interfaces
| Standard interfaces |
USB 2.0 |
Scanning
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
26 ppm |
| Optical scanning resolution |
600 x 600 DPI |
| Input colour depth |
48 bit |
Power
| Power consumption (off) |
0.4 W |
| Power supply type |
AC |
System requirements
| Mac operating systems supported |
Y |
Additionally
| Scan type |
Sheet-fed scanner |
| Minimum scan area (Auto Document Feeder) |
53.34 x 73.66 mm |
| ADF scan speed (colour, A4) |
26 ppm |
| Colour scanning |
Y |
Sheet-fed, One-Pass Duplex Color Scanner, 600 dpi, USB 2.0
The best choice for easy document management

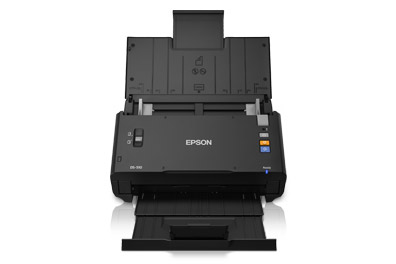

The WorkForce DS-510 scanner brings a new level of efficiency to your busy business with fast, easy, document management. Scan documents, business cards, ID cards and more directly to popular cloud services with the included software and intuitive one-touch scanning. Boasting speeds up to 26 ppm and a built-in Automatic Document Feeder, the DS-510 can scan stacks of documents in no time. Easily create searchable PDFs or documents you can edit when you need to. This compact performer even features advanced color and image adjustments. Best of all, it’s compatible with most existing office software, with both ISIS and TWAIN drivers available.
Robust performance. Compact Design.
This powerful performer speeds through scans up to 26 ppm/52 ipm. And, it scans both sides of one sheet in just one pass from its built-in 50-page Automatic Document Feeder. It also saves time and avoids paper jam delays with the ultrasonic double-feed detection technology, which senses if more than a single page has been fed in, and automatically stops the scan, so you don’t have to restart from page one. Packing a lot of power into a small footprint, the DS-510 is an ideal fit for nearly any office environment. Plus, with the optional network interface unit, each member of your team can access high performance scanning for critical project needs.
Ready for any task
The WorkForce DS-510 makes it easy to scan and edit documents, create searchable PDFs, and save critical documents as PDF files to archive or access later. It can also scan oversized folded pages without using a carrier sheet. Both sides will be scanned, stitched together and saved digitally. The DS-510 also accommodates stacks of business cards and rigid ID cards.
