Video
| Playback resolutions supported |
1920 x 1080, 1280 x 1024, 1024 x 768, 800 x 600 |
| Analog signal format system |
NTSC, PAL |
| Video compression formats |
H.264 |
| Video capturing speed |
30 fps |
Networking
| Ethernet interface type |
Gigabit Ethernet |
| Supported network protocols |
TCP/IP, DHCP, DDNS, NTP, SMTP |
Technical details
| Remote viewing |
Y |
| Maximum frame rate |
960 fps |
| USB connectivity |
Y |
| Motion sensor |
Y |
| Supported protocols |
PELCOP, PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA, SAMSUNG, RM110, HY |
| Channels quantity |
32 channels |
Packaging content
| Warning stickers |
Y |
| Handheld remote control |
Y |
| Quick start guide |
Y |
Ports & interfaces
| eSATA ports quantity |
2 |
| RS-485 ports |
1 |
| BNC input ports |
32 |
| HDMI ports quantity |
1 |
| BNC output ports |
1 |
| VGA (D-Sub) output ports |
1 |
Hard drive
| Number of hard drives supported |
8 |
| Hard drive interface |
Serial ATA |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

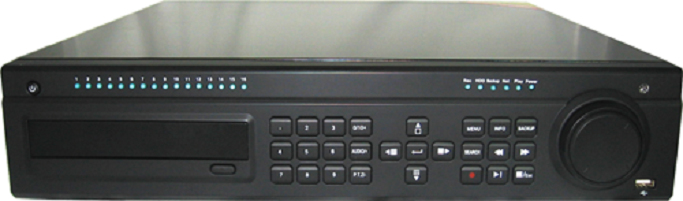

32CH, H.264, Standalone DVR, 960fps, USB 2.0, HDMI, VGA, 10/100/1000 Base-T Ethernet, Black
32 CH H.264 Pentaplex Network DVR, 32 CH Realtime CIF Recording, 16 CH audio input, 16 CH alarm input,1920*1080 HDMI Output, Support D1 Recording, 16 CH Playback, 8x SATA HDD, Mobile Phone Surveillance, 2U dimension.
- Adopt standard H.264 format
- Support max 8 x SATA HDD
- Support HDMI Output
- Utilize graphic user interface
- Support full mouse control
- Support VGA output
- Support dual stream
- Support IE browser to remote view
- Support mobile surveillance by phones with WinCE, Symbian, and iphone
- Adopt standard FAT32 file system, compatible with computers
- Support AVI converter
- Support CMS software for multi devices central management
- Support Dynamic DNS
- Support multi-level user management. Administrator can manage the operating rights of other users.
- Support event log. Users can check the earlier working status of the DVR by this.
