Power
| Power consumption (max) |
42 W |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| BNC output ports |
2 |
| BNC input ports |
8 |
Packaging content
| Handheld remote control |
Y |
Networking
| Supported network protocols |
TCP/IP, UDP, HTTP, NTP, DHCP, DDNS |
Video
| Playback resolutions supported |
1440 x 900\n1280 x 1024\n1024 x 768 |
| Video capturing speed |
240 fps |
Hard drive
| Number of hard drives supported |
1 |
| Hard drive interface |
Serial ATA |
| Maximum hard drive capacity |
200 GB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

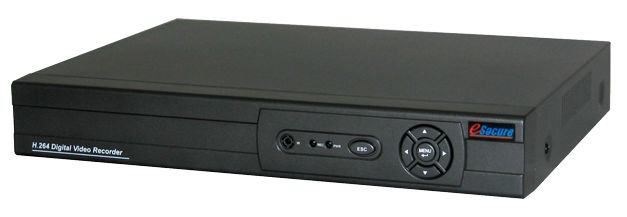

8 Channels, NTSC/PAL, H.264, SATA HDD up to 2000GB, VGA, USB2.0, Fast Ethernet, Black
- 3G Mobile Monitoring
- Excellent platform
- Embedded high-speed microcontroller , high stability System
- 240fps Realtime Recording, 8ch video input, 1ch audio input
- Easy backup with USB flash drive
- Network Support Time searching mode
- Simple & Powerful User-operation
- Mouse operation complete the whole setup, graphic control & information input for DVR
- Support IR remote control, Mouse control, Front pannel
- User-friendly OSD
- Graphical & multi-language OSD makes operation easier & more user-friendly
- Remote Independent Operation
- Changing of live view on the remote side is independent from the local site
- H.264 Compression Format
- Lower bitrate need - faster network transfer, higher graphic quality for live, recording
- Minimize record file size - much longer record time
- Multiple Operation Mode
- Support live display, record, playback, backup, network
- VGA Output
- Built-in VGA interface, putput resolution up to 1440*900
- Easy & Free Upgrade
- Releases new firmware for free upgrade to advanced functions & the upgrade can be completed via USB flash drive
- 1 SATA HDD, up to 2000GB supported
- Support 2 Way Audio
