Other features
| Management platform |
SNMP / HTTP |
| Output connection type |
T16mm |
| Input connection type |
T16mm |
| Output connections |
DPC, CDS, CBC, AVR |
| Nominal output voltage |
230 V |
Power
| Input operation voltage (max) |
280 V |
| Input operation voltage (min) |
150 V |
| Efficiency |
98% |
| Maximum current |
46 A |
| Output voltage THD |
5% |
| Output power capacity |
10000 VA |
| Crest factor |
2:1 |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output power |
8000 W |
Performance
| Number of phases |
1 |
| Audible alarm(s) |
Y |
| Fan diameter |
80 mm |
| EMI/RFI noise filtering |
Y |
| Cooling type |
Passive |
| Power protection features |
Overheating, Overload, Short circuit |
Battery
| Hot-swap battery |
N |
| Battery recharge time |
2 h |
| Typical backup time at half load |
15 min |
| Typical backup time at full load |
7 min |
| Replacement battery cartridge |
12V 7Ah |
| Cold start |
Y |
| Automatic battery test |
Y |
| Battery replacement alarms |
Audible, LED |
| Battery type |
VRLA |
Operational conditions
| Operating altitude |
0 - 1000 m |
Additionally
| RS-232 port |
1 |
| Filtering |
LC |

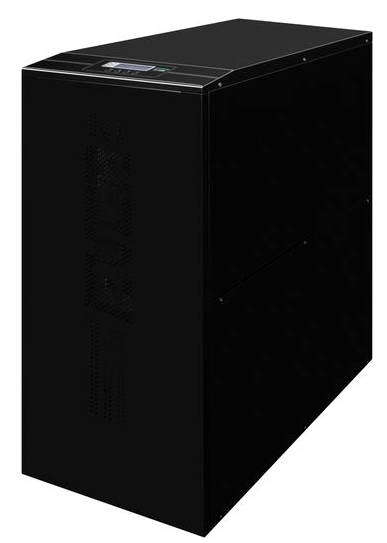

Sinline Pro 10 000 - 10kVA, VRLA 1x28x7Ah
Sinline Pro 10000 is a series of state-of-the-art line-interactive power supply units designed to protect servers, computer networks, and data processing systems. Devices from this series form an autonomous sinusoidal voltage source of 230 V.
Due to very high energy efficiency exceeding 98%, Sinline Pro 10000 consumes only a small part of the supplied power for its operation. This means real savings for a user. A device from the Sinline Pro 10000 family is fitted with a unique Clear Digital Sinus system (CDS) generating accurate sinusoidal output voltage. The power supply unit is also fitted with the Automatic Voltage Regulation system (AVR) that enables lightning correction of small network voltage drops and rises.
A special mode of the so-called Soft Start enables the problem free activation of the power supply unit even under high load. The battery charging time does not exceed 2 hours. If necessary, optional external battery packs can be connected to the Sinline Pro 10000 series.
Zastosowanie: Serwery, komputery PC, terminale komputerowe, urządzenia wrażliwe na zaniki napięcia, urządzenia telekomunikacyjne. Sinline Pro to inteligentne i bezpieczne zasilanie sprzętu komputerowego z gwarantowaną "czystą sinusoidą" na wyjściu przy pracy bateryjnej.
The series models include:
Sinline Pro 10 000.
It is also possible to purchase an extended warranty.
