Performance
| Video loss detection |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Playback modes |
Pause |
| Languages support |
CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP |
| Video formats supported |
H.264 |
| Video motion detection |
Y |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Maximum frame rate |
30 fps |
| Minimum processor |
Intel Core i3-2100 |
| Supported network protocols |
TCP-IP, DHCP, PPPoE, DDNS, SMTP, NTP |
| On Screen Display (OSD) |
Y |
| Video input channels |
20 channels |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
Weight & dimensions
| Depth |
219 mm |
| Weight |
2970 g |
| Width |
183 mm |
| Height |
140 mm |

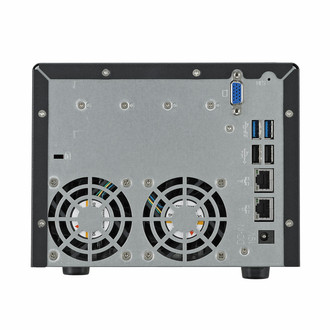

Ports & interfaces
| USB 2.0 ports quantity |
2 |
| RAID levels |
1, 5, 6, 10 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
Storage
| Number of hard drives supported |
4 |
| Maximum storage capacity |
16 TB |
| RAID support |
Y |
| Total installed storage capacity |
12000 GB |
| Hard drive interface |
Serial ATA |
Features
| RoHS compliance |
Y |
| Certification |
CE, FCC |
Power
| Power consumption (max) |
90 W |
Additionally
| Colour of product |
Black |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |
Elite2, 20CH, H.264, Watchdog, OSD, VGA x 1, 2 x USB 2.0; 2 x USB 3.0, 90 W, 12 TB
- Elite 2 NVR8004X can support up to 20 channels
- Up to 16 TB hard drive storage capacity
- 4 HDD bays with removable trays
- Dual NIC for separation of streaming camera video form LAN / WAN monitoring network
- Built-in web server for single NVR live / playback viewing and configuration
- Dual live view windows permit a total number of 32-channel live view display (16-channel live view window on each monitor at 1 PC)
- Simultaneously display 16-channel live view & 16-channel playback

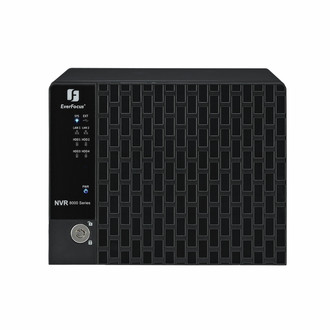

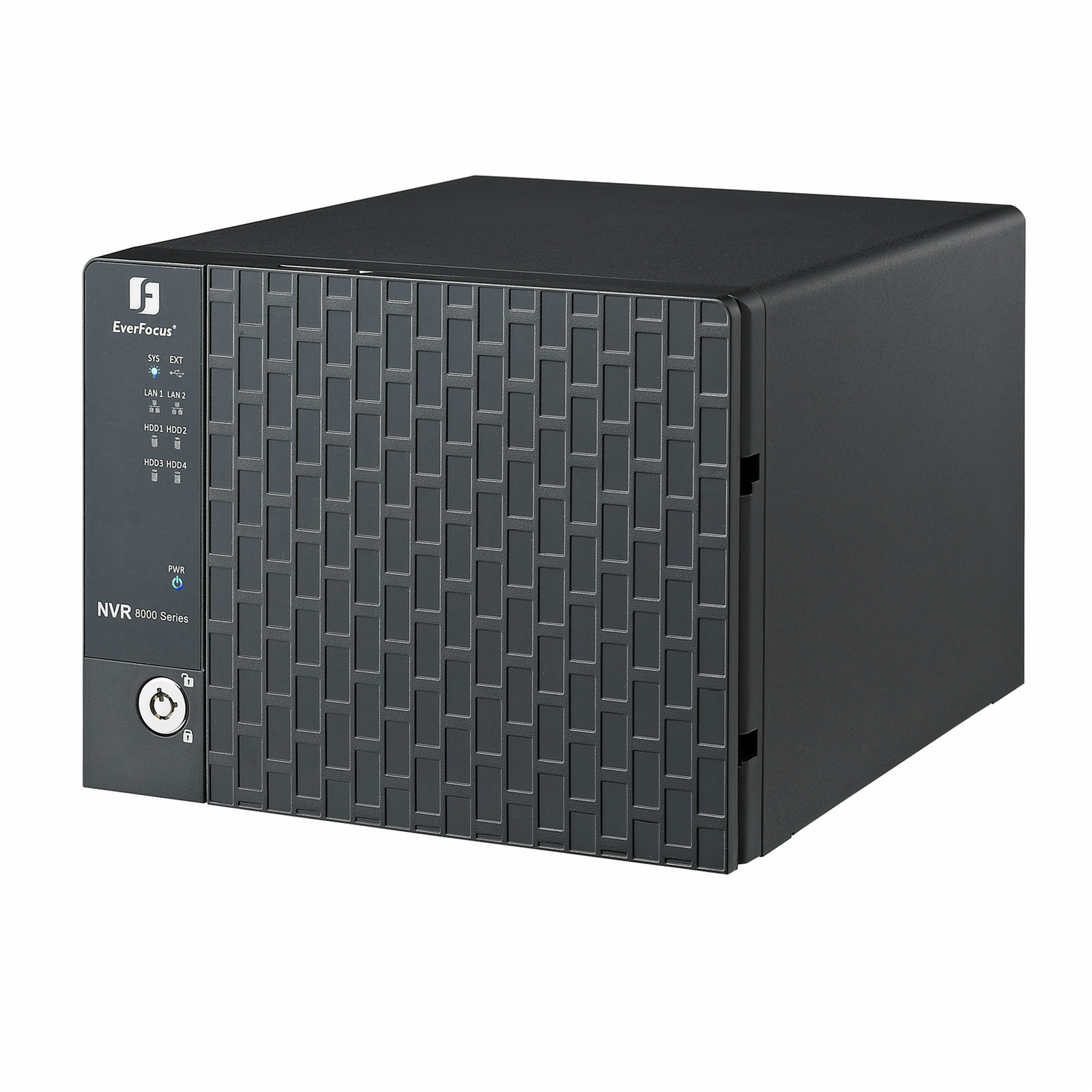

EverFocus Elite 2 NVR8004X-16 is a professional standalone network video server designed for small and medium-sized businesses (SMB) and enterprises. Operating on a Linux-based system, the NVR supports up to 32-channel multi-live view. The NVR supports H.264 video compression format and suppoprts all EverFocus’ and ONVIF-supported IP cameras. Besides, all EverFocus products such as DVR, NVR and mobile DVR camera streams are supported. Elite 2 NVR8004X-16 features equipped with 4 SATA II HDD bays and removeable hot-swap HDD trays, this NVR provides up to 16 TB storage capacity. Except the 32-channel live view and 16-channel multi-playback function, other cutting-edge functions available on EverFocus Elite 2 NVR8004X-16 include easy data search by event date and time. With the newly improved Event Management function, users are now supplied with a much larger range of supported event types and handling options in the database. Suspicious activities and behaviors can be detected and responded to on a much more accurate and timely manner. In addition, EverFocus has further strengthened users’ account management for secure access control in vertical markets, such as residential communities, parking lot, retails stores, shopping malls, banks, hospitals, offices, factories and much more. Users may enable and perform the specified functions through the web-based GUI by the Web browser. EverFocus Elite 2 NVR8004X-16 NVR is the best choice for a complete network-based surveillance solution. It is versatile, flexible and well caters to the needs of the industry.
