Performance
| Analog signal format system |
NTSC |
| Video loss detection |
Y |
| Data transfer rate (RAID 5 mode) |
56 Mbit/s |
| Alarm input channels |
1 |
| Alarm output channels |
1 |
| Playback modes |
Pause |
| Video formats supported |
H.264 |
| DHCP client |
Y |
| Video motion detection |
Y |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Maximum frame rate |
240 fps |
| Snapshot |
Y |
| Supported network protocols |
UDP, SMTP, RTP, RTSP, NTP |
| On Screen Display (OSD) |
Y |
| Video input channels |
8 channels |
Storage
| Hard drive size |
3.5 " |
| Number of hard drives supported |
4 |
| Maximum storage capacity |
16 TB |
| RAID support |
Y |
| Total installed storage capacity |
4000 GB |
Weight & dimensions
| Depth |
423 mm |
| Weight |
6000 g |
| Width |
430 mm |
| Height |
72 mm |
Ports & interfaces
| USB 2.0 ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
| eSATA ports quantity |
1 |
| RAID levels |
5 |
| RS-485 ports |
1 |
| Power over Ethernet (PoE) ports quantity |
8 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) output ports |
1 |
Power
| Power consumption (max) |
300 W |
Features
| Certification |
CE, FCC, UL |
| Rack mounting |
Y |
System requirements
| Mobile operating systems supported |
Android, iOS |
Additionally
| Colour of product |
Black |
| Выход HDMI |
Y |
| RS-232 port |
1 |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 40 °C |

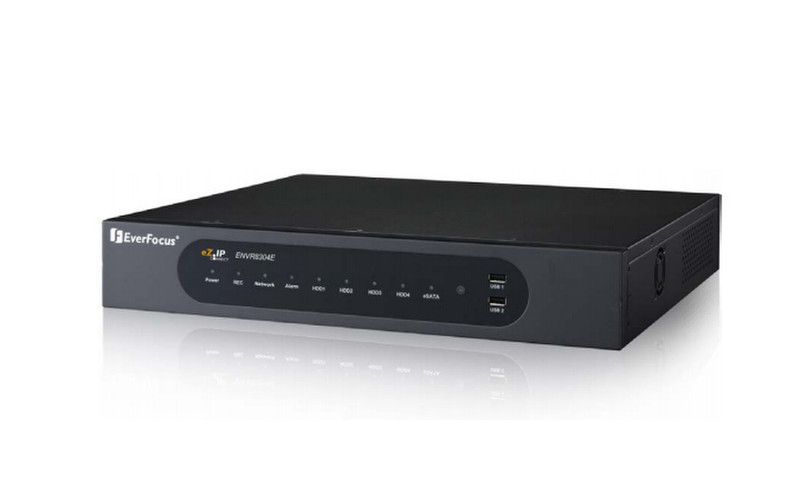

4 TB, 8-channel, HDMI x 1, VGA x 1, 56 Mbps, H.264, Linux embedded, 3.5’’HDD x 4, eSATA x 1, USB 2.0 x 4, 100-240 V AC, 300 W
- 8-channel real-time recording and playback at 1080p resolution
- 8 PoE ports
- Support megapixel IP cameras
- The plug and play design simplifies installation and configuration
- H.264 compression format for enhanced recording capacity and improved network image transmission speed
- Separately configured HDMI or VGA (1080p) monitor outputs
- High bandwidth 1080P recording (200 / 240fps) with recordable reduced bandwidth stream for mobile or multiplexed viewing applications
- RAID5 – for full data protection
- Free EverFocus DDNS Service – static IP address is not required for reliable remote access
- Supports one eSATA port for external HDD (optional: EDA450)
- Supports live monitoring and playback of video from mobile devices via MobileFocus / MobileFocus Plus Apps
- Multiple Control Inputs: mouse / remote controller / EKB500 and EKB200 keyboard
- Multiple intelligent video query functionality, including time, snapshot and event search
- Powerful archive functionality from both remote and NVR sites
- Simplified access to common features such as setup, archival, playback and search functions through express menus • Remote configuration support from built-in web interface
- Gigabit Ethernet interface for remote network viewing and control
- Integration with PowerVideo Plus
- Multi-language support
- 19” Rack mountable – rack ears included
