Performance
| NVIDIA G-SYNC |
Y |
| DirectX version |
12.0 |
| OpenGL version |
4.5 |
| NVIDIA GameWorks VR |
Y |
| NVIDIA 3D Vision |
Y |
| Shader model version |
5.0 |
| PhysX |
Y |
| Texture Fill Rate (TFR) |
115.7 GT/s |
| TV tuner integrated |
N |
| Full HD |
Y |
| HDCP |
Y |
Processor
| Processor frequency |
1607 MHz |
| Graphics processor family |
NVIDIA |
| CUDA |
Y |
| Maximum digital resolution |
7680 x 4320 pixels |
| Processor boost clock speed |
1835 MHz |
| FireStream |
N |
Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bandwidth (max) |
192 GB/s |
| Memory bus |
192 bit |
| Memory clock speed |
8008 MHz |
| Discrete graphics adapter memory |
3 GB |
System requirements
| Linux operating systems supported |
Y |
Ports & interfaces
| DVI-D ports quantity |
1 |
| Interface type |
PCI Express x16 3.0 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
Power
| Supplementary power connectors |
1x 6-pin |
| Minimum system power supply |
400 W |
Design
| Number of slots |
2 |
| Form factor |
ATX |
| Cooling type |
Active |
Additionally
| Graphics controller |
GeForce GTX 1060 |
| Dual-link DVI |
Y |

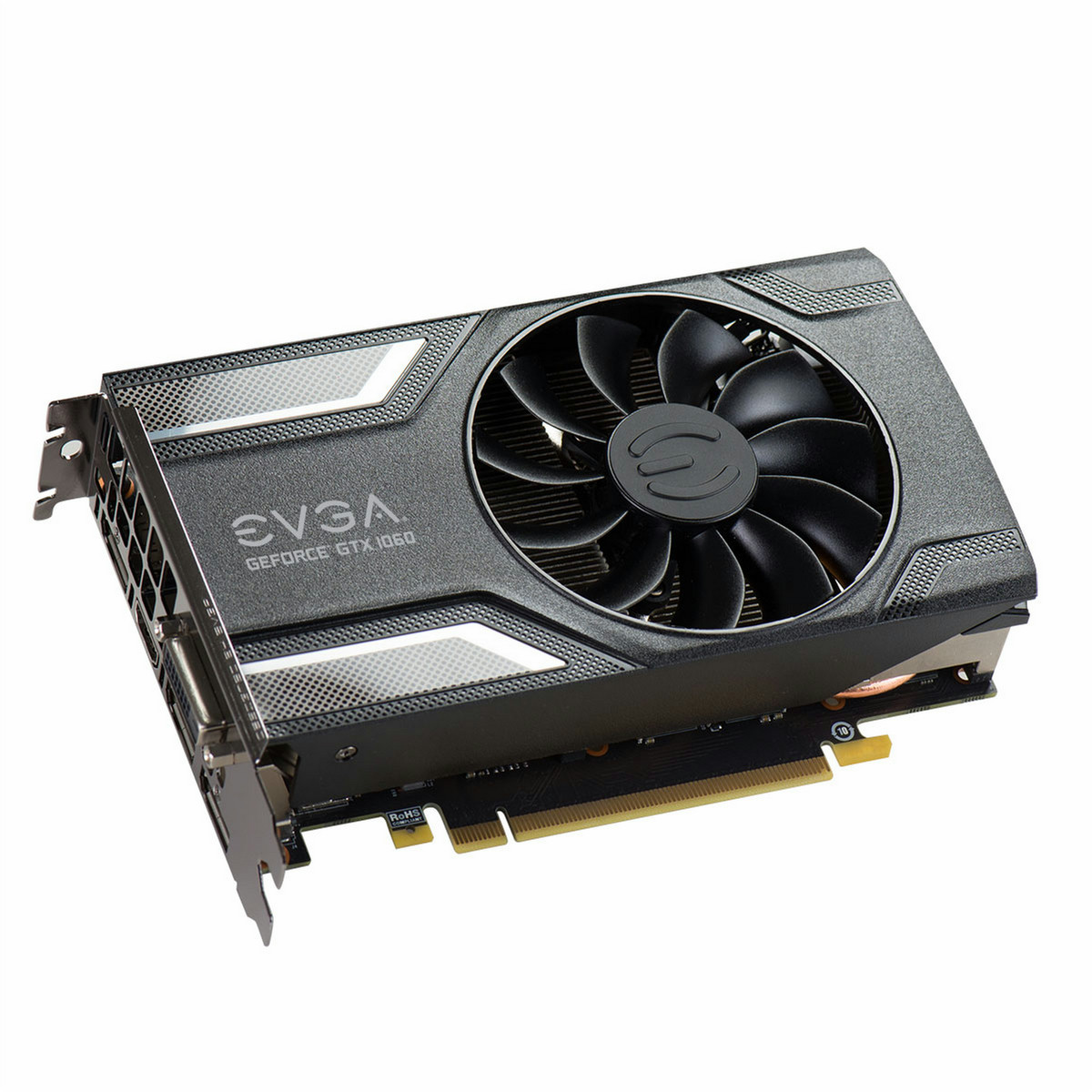

NVIDIA GeForce GTX 1060, PCI Express x16 3.0, 3GB GDDR5, 192 bits, 3 x DisplayPort, 1 x HDMI, 1 x DVI-D
NVIDIA GameStream Technology
Stream extreme GeForce GTX PC gaming experiences to portable device like NVIDIA SHIELD with super-smooth, low-latency performance.
NVIDIA G-SYNC Ready
NVIDIA G-SYNC monitors feature revolutionary NVIDIA technology that eliminates screen tearing while also reducing input lag. The result is the smoothest, fastest, and most responsive gaming experience ever seen.
OpenGL 4.5 Support
Supporting the latest standards in the OpenGL API.
Simultaneous Multi-Projection
Simulates seperate viewports of the same scene giving improved performance in VR and improved display accuracy in NVIDIA Surround
VR Ready
Discover next-generation VR performance, the lowest latency, and plug-and-play compatibility with leading headsets-driven by NVIDIA VRWorks technologies.
NVIDIA Ansel
Revolutionary new 360-degree image capture.
NVIDIA GPU Boost 3.0
Dynamically maximizes clock speeds based on workload and allows enthusiast-class controls such as temperature target and fan controls, extra over-voltage headroom, and optimizations for water-cooling solutions. This allows gamers to push performance to new levels.
Microsoft DirectX 12
Support for the latest Microsoft DirectX API to enable next-generation gaming.
Vulkan API
A next generation graphics and compute API from Khronos Group that provides high-efficiency, cross-platform access to modern GPUs.
PCI Express 3.0
This card is designed for the PCI Express 3.0 bus architecture, offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications. It also maintains backwards compatibility with existing PCI Express motherboards for the broadest support.
Max Digital Resolution - 7680x4320
DisplayPort 1.4 Ready supporting up to 7680x4320 resolution at 60Hz
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
The latest standards in DisplayPort and HDMI interfaces.
Built for EVGA Precision XOC
This new version of Precision is built for the NVIDIA Pascal architecture and combines the best of EVGA Precision and EVGA OC Scanner to give you never before seen overclocking features and built in automatic tuning.
