Processor
Thermal Design Power (TDP) |
35 W |
Maximum number of PCI Express lanes |
1 |
Memory clock speeds supported by processor |
1333, 1066 MHz |
Memory channels supported by processor |
Dual |
Conflict Free processor |
N |
PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
Integrated 4G WiMAX |
Y |
Tjunction |
85 °C |
FSB Parity |
N |
CPU multiplier (bus/core ratio) |
24 |
Processor operating modes |
64-bit |
ECC supported by processor |
N |
Memory bandwidth supported by processor (max) |
21.3 GB/s |
Maximum internal memory supported by processor |
16 GB |
Processor cache type |
Smart Cache |
PCI Express slots version |
2.0 |
Number of processors installed |
1 |
Processor cache |
3 MB |
Processor lithography |
32 nm |
Processor codename |
Sandy Bridge |
Stepping |
J1 |
Processor cores |
2 |
Processor frequency |
2.4 GHz |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
DMI |
Processor special features
Intel® Small Business Advantage (Intel® SBA) |
N |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
37.5 mm |
Processor ARK ID |
53442 |
Processor code |
SR0DP |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel® Rapid Start Technology |
N |
Intel® Smart Response Technology |
N |
Intel Dual Display Capable Technology |
Y |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Smart Cache |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
Y |
Intel® Identity Protection Technology (Intel® IPT) |
Y |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Identity Protection Technology version |
1.00 |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
Y |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Intel Rapid Storage Technology |
N |
Graphics & IMC lithography |
32 nm |
Intel Fast Memory Access |
Y |
Intel Flex Memory Access |
Y |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Intel Smart Connect Technology |
N |
Intel® Quick Sync Video Technology |
Y |
Intel® Insider™ |
Y |
Intel® My WiFi Technology (Intel® MWT) |
Y |
Intel Clear Video Technology for MID |
N |
Supported instruction sets |
AVX |
Graphics
On-board graphics adapter ID |
0x116 |
Discrete graphics adapter model |
Not available |
On-board graphics adapter base frequency |
650 MHz |
On-board graphics adapter dynamic frequency (max) |
1150 MHz |
Number of displays supported (on-board graphics) |
2 |
On-board graphics adapter family |
Intel HD Graphics |
On-board graphics adapter |
Y |
Networking
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wi-Fi |
N |
Cabling technology |
10/100/1000Base-T(X) |
Performance
Audio output channels |
5.1 |
Audio system |
Realtek ALC 662 |
Memory
Memory layout (slots x size) |
1 x 2 GB |
Internal memory type |
DDR3-SDRAM |
Memory clock speed |
1333 MHz |
Memory slots |
2x SO-DIMM |
Maximum internal memory |
8 GB |
Internal memory |
2 GB |
Optical drive
Optical drives quantity |
1 |
Optical drive type |
DVD±RW |
Storage
Hard drive capacity |
250 GB |
Hard drive speed |
5400 RPM |
Hard drive interface |
Serial ATA II |
Number of hard drives installed |
1 |
Hard drive size |
2.5 " |
Total storage capacity |
250 GB |
Card reader integrated |
N |
Storage media |
HDD |
Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
DVI port |
Y |
Headphone outputs |
1 |
Microphone in |
Y |
DisplayPorts quantity |
1 |
DC-in jack |
Y |
Power
Power supply input voltage |
100 - 240 V |
Power supply |
90 W |
Design
Cable lock slot |
Y |
Cable lock slot type |
Kensington |
Other features
Number of hard drives supported |
1 |
Additionally
Chipset |
Intel QM67 Express |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |
System bus data transfer rate |
5 GT/s |
InTru™ 3D Technology |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

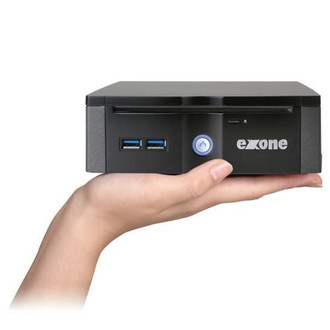

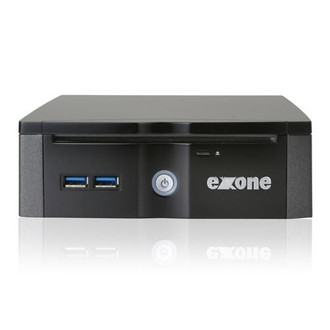

Exone Nano III. Processor family: Intel Core i3-2xxx, Processor model: i3-2370M, Processor socket: Socket 988. Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 1 x 2 GB, Memory slots: 2x SO-DIMM. Storage media: HDD, Hard drive interface: Serial ATA II. Optical drive type: DVD±RW. On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter model: Intel HD Graphics 3000, On-board graphics adapter ID: 0x116
