Processor special features
| Processor code |
SR0DP |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel Identity Protection Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
32 nm |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
53442 |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
N |
Performance
| Audio output channels |
5.1 |
| Audio system |
Realtek ALC 662 |
Processor
| Processor codename |
Sandy Bridge |
| Memory clock speeds supported by processor |
1066, 1333 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Integrated 4G WiMAX |
Y |
| CPU multiplier (bus/core ratio) |
24 |
| Processor operating modes |
64-bit |
| Stepping |
J1 |
| Processor cores |
2 |
| Processor frequency |
2.4 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21.3 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor cache |
3 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
35 W |
| Maximum number of PCI Express lanes |
1 |
| Tjunction |
85 °C |
| FSB Parity |
N |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
8 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Optical drive
| Optical drives quantity |
1 |
| Optical drive type |
DVD±RW |
Graphics
| On-board graphics adapter base frequency |
650 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter |
Y |
| On-board graphics adapter ID |
0x116 |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter dynamic frequency (max) |
1150 MHz |
Storage
| Hard drive capacity |
250 GB |
| Hard drive speed |
5400 RPM |
| Total storage capacity |
250 GB |
| Card reader integrated |
N |
| Storage media |
HDD |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Hard drive interface |
Serial ATA II |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply |
90 W |
Design
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Other features
| Number of hard drives supported |
1 |
Software
| Operating system architecture |
32-bit |
Additionally
| InTru™ 3D Technology |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |
| Chipset |
Intel QM67 Express |
| Ethernet LAN connection |
Y |

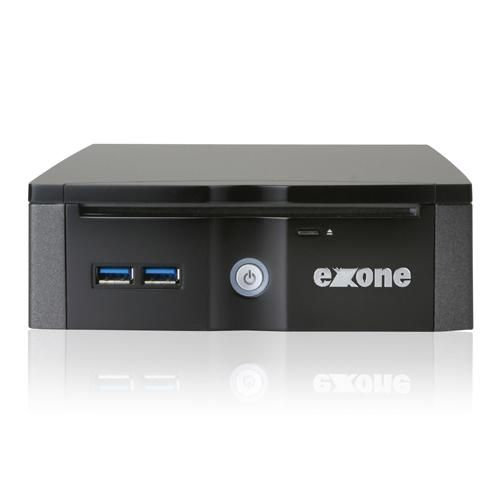

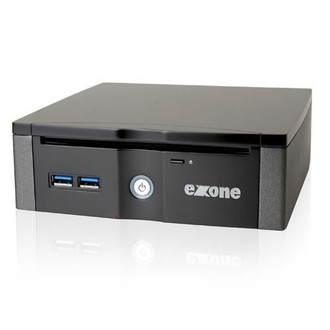

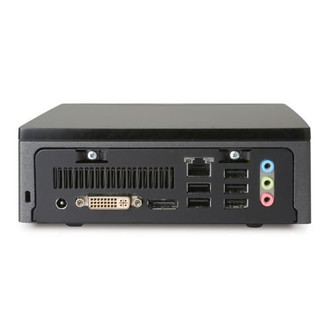

Exone Nano III. Processor family: Intel Core i3-2xxx, Processor model: i3-2370M, Processor socket: Socket 988. Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 1 x 2 GB, Memory slots: 2x SO-DIMM. Storage media: HDD, Hard drive interface: Serial ATA II. Optical drive type: DVD±RW. On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter model: Intel HD Graphics 3000, On-board graphics adapter ID: 0x116
