Ports & interfaces
| Hub interfaces |
USB 3.0 (3.1 Gen 1) Type-A |
| Ports quantity |
16 |
| Host interface |
USB 3.0 (3.1 Gen 1) Type-B |
| Terminal block port |
Y |
System requirements
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Performance
| Surge protection |
Y |
| Data transfer rate |
5000 Mbit/s |
Power
| USB powered |
Y |
| Power source type |
USB |
| Input voltage |
7-24 V |
16x USB 3.0/3.1 Gen1, USB B, 15KV ESD, 132.5 x 65 x 48.2 mm, 1100 g

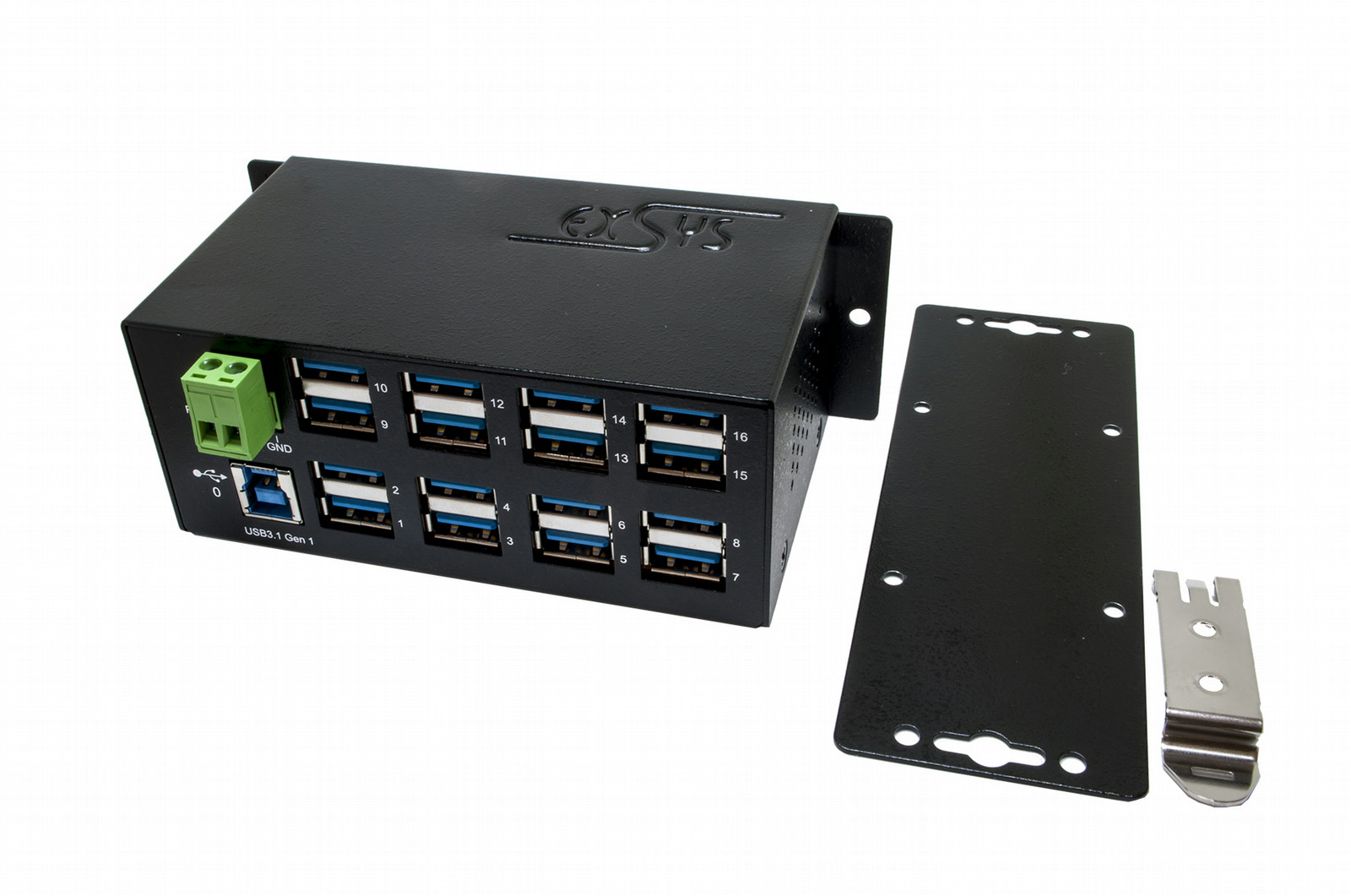

The EX-1113HMS offers 16 USB 3.0/3.1(Gen1) downstream ports with 15KV ESD Surge Protection. It is possible to connect up to ten external USB 3.0 peripheral devices to one USB 3.0/3.1(Gen1) port in a 19-inch rack. He can be used for automation– and office applications. The EX-1113HMS fulfils the special requirements of industrial applications.
