EXSYS EX-1182VIS USB 3.0 (3.1 Gen 1) Type-B 5000Mbit/s White interface hub

EXSYS EX-1182VIS USB 3.0 (3.1 Gen 1) Type-B 5000Mbit/s White interface hub

MPN: EX-1182VIS
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Ports & interfaces

Hub interfaces USB 3.0 (3.1 Gen 1) Type-A
Ports quantity 4
Host interface USB 3.0 (3.1 Gen 1) Type-B
USB 3.0 (3.1 Gen 1) Type-A ports quantity 4
DC-in jack Y

System requirements

Linux operating systems supported Y
Mac operating systems supported Y

Performance

Surge protection Y
Data transfer rate 5000 Mbit/s

Power

Power source type DC

Technical details

Operating temperature (T-T) 32 - 131 °F

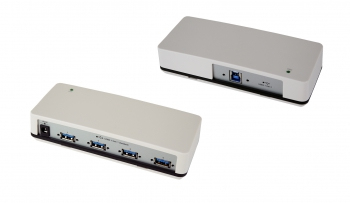

USB 3.0/3.1(Gen1) HUB with 4 ports, 3KV Optical Isolation, 151.1 x 62 x 34mm, 0.3kg With the EX-1182VIS you can extend from one USB 3.0/31.(Gen1) port to four USB 3.0/3.1((Gen1) ports with 15KV ESD Surge Protection and 3KV Optical Isolation. It’s possible now to connect up to four external USB 3.0/3.1(Gen1) peripherals devices to one USB 3.0 port from the Notebook, Desktop Computer or Server. With the USB cable EX-K1551V (1.5 meter) A-male to B-male you can fix the connector with screw. The cable can’t be disconnect any more by him self. Optional you can install the EX-1182VIS with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack.

- USB 3.0/3.1(Gen1) HUB with four USB 3.0 ports with screw lock (Plastic case)
- 3KV Optical Isolation between its Upstream and Downstream Facing Ports
- 15KV ESD Surge Protection for all ports
- Automatic recognition the data transfer rate for the attached external peripheral devices
- Support all USB 2.0/1.1 compatible devices
- Power: Self Power with 5V power supply
- Charges all 4 USB ports up to 1.5A, each simultaneaously
- Supports USB Battery Charging v1.2: CDP and DCP modes
- Chip-Set: Genesys
