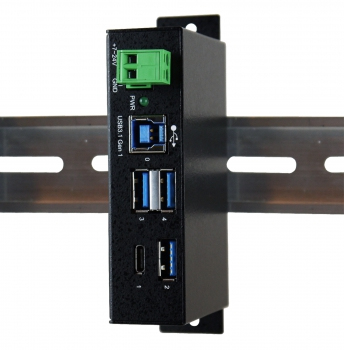

EXSYS EX-1194HMS USB 3.0 (3.1 Gen 1) Type-B 5000Mbit/s Black interface hub

5Gbps, USB 3.0/3.1(Gen1) Metal HUB with 1 x C – and 3 x A - ports (Surge Protection), 114.5 x 26.3 x 57.3mm, 0.3kg The EX-1194HMS is a USB 3.0/3.1(Gen1) Metal hub that complies with the Universal Serial Bus (USB) specification Revision 3.1(Gen1) and works up to 5Gbps. It provides one USB-B upstream port and 4 downstream facing ports with one USB-C and 3 USB-A connectors. The EX-1194HMS support 15KV ESD Surge protection for all ports. Port 1 support a full-featured USB-C female port. It is possible to connect up to four external USB 3.0 peripheral devices to one USB 3.0 port in a 19-inch rack. He can be used for automation– and office applications. The EX-1194HMS fulfils the special requirements of industrial applications.

- USB 3.0 HUB with one USB C– as well as three A-ports
- 15KV ESD Surge protection
- Support protection of devices against voltage fluctuation
- Power from +7 up to +48V DC over terminal block
- Easy installation with the included DIN-Rail Kit
- Support 900mA USB Bus Power for each port
- Support Fast USB Battery Charging: CDP and DCP modes
- Support all USB 1.1 up to 3.0 compatible devices
- Optional power over USB port +5 Volt (Bus-Power)
- Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
