EXSYS EX-1332HMV-RJ USB 2.0 Type-B Black

EXSYS EX-1332HMV-RJ USB 2.0 Type-B Black

MPN: EX-1332HMV-RJ
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Technical details

Operating temperature (T-T) 32 - 131 °F

Ports & interfaces

Ports quantity 2
Host interface USB 2.0 Type-B

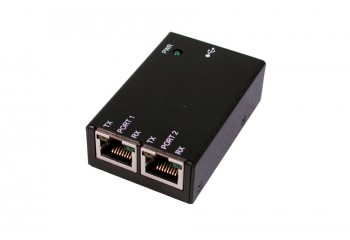

USB 2.0, 2S Serialports (RJ45), Metal, 65 x 42 x 20m, 0.32kg The EX-1332HMV-RJ USB 2.0 to serial RS-232 in a metal case, provides two high performance 16C550-type UART compatible RS-232 serial ports with RJ-45 connector. It is designed for PC or Notebooks to provide instant COM port expansion in a robust metal case through the USB 2.0 bus. With the easy installation you don’t need to open the computer system and install the EX-1332HMV-RJ when the system run. With the USB cable EX-K1552V A-male to B-male you can fix the connector with screw. The cable can’t be disconnect any more by him self. Optional you can install the EX-1332HMV-RJ with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack. The EX-1332HMV-RJ has LED displays for the data communication.

- Interface: RS-232 V.24
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 7 und 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power from the USB Bus (Bus Power)
- Supports TX and RX Activity LED Indicators
- Chip-Set: FTDI
