Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Networking
| Flow control support |
Y |
| Ethernet LAN data rates |
100, 1000, 10000 Mbit/s |
| Chipset |
Tehuti TN4010 |
Packaging content
| Low-profile bracket |
Y |
| Drivers included |
Y |
Performance
| Auto MDIX IEEE |
Y |
| Wake-on-LAN ready |
Y |
Additionally
| Wireless technologies |
Wired |
| Jumbo Frames support |
Y |
| Transfer rate (Mbps) |
10000 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

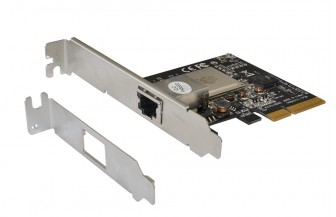

Ethernet 10GBase-T PCIe x4 Network card incl. Low Profile bracket
The EX-6061 is a ultra high performance 10Gigabit LAN to PCI-Express x4 Bus Card which is fully compatible with IEEE 802.3/u/ab and IEEE 802.1Q. It is specially designed for any PC with a PCI–Express slot. With the EX-6061 you can upgrade your Ethernet LANs to the speed of 10000Mbps, that’s up to 100 times faster than the standard high speed Ethernet. It will supercharge your data transfer on your local network and improve your bandwidth. It provides a big transmit/receive buffer, crossover detection and auto-correction. It is fully plug –and-play compatible to install it easily and quickly and does support a various range of operating systems.With the included Low Profile Bracket the EX-6061 can also be used for small computer chassis of maximum 8 cm height.
- Support 100/1000/10000 Base-T Ethernet standards.
- Support Auto-MDI/MDI-X Auto (for Crossover cable).
- Support Jumbo Frame up to 16Kbytes.
- EEE (Energy Efficient Ethernet).
- Wake-on-LAN and Remote Wake-up.
- Support Full Duplex Flow Control (IEEE 802.3x).
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding.
- Virtual NIC support.
- Activity LED to check the data transfer.
- Standard CAT-6A cabling with RJ45 connector.
- Chip-Set: Tehuti TN4010.
