Networking
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Flow control support |
Y |
| Chipset |
Realtek RTL8111C |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Performance
| Mac operating systems supported |
Y |
| Wake-on-LAN ready |
Y |
Bandwidth
| Full duplex |
Y |
| Buffer size |
48 KB |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

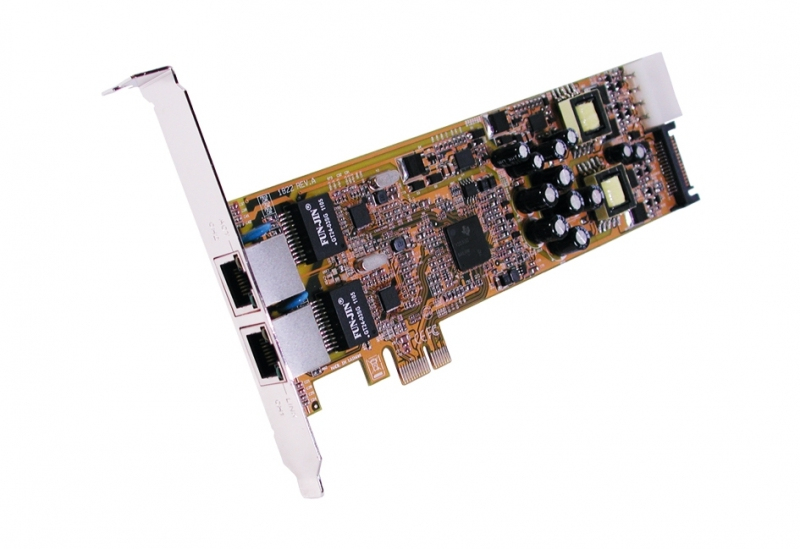

PCIe Dual Netware Card w/ 2 x RJ-45, Gigabit, PoE
The EX-6072PoE is the highest performance dual-channel PoE gigabit LAN to PCI-Express Card which is fully compatible with PoE specification IEEE 802.3at Type 1 and 2 and IEEE 802.3/u/ab. It is specially designed for any PC with a PCI–Express slot. With the EX-6072PoE, you can upgrade your Ethernet LANs to the speed of 1000Mbps on each port, that’s up to 10 times faster than the standard high speed Ethernet. It will supercharge your data transfer on your local network and improve your bandwidth. It provides a big transmit/receive buffer, crossover detection and auto-correction. It is fully plug –and-play compatible to install it easily and quickly and does support a various range of operating systems. With the EX-
6072PoE can now supports PoE without additional switches, Power over Ethernet devices are connected.
