Processor
| Tcase |
72 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.26 GHz |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| Conflict Free processor |
N |
| CPU multiplier (bus/core ratio) |
17 |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBFD |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
2.53 GHz |
| Processor cache |
8 MB |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
80 W |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
| Number of processors installed |
2 |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| ECC supported by processor |
Y |
| Stepping |
D0 |
Processor special features
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
40200 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
Storage
| Hard drive interface |
Serial ATA II |
| Total storage capacity |
2000 GB |
| Hot-swap |
Y |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Memory
| Maximum internal memory |
144 GB |
| Memory slots |
6 |
| Internal memory |
12 GB |
| Memory clock speed |
1066 MHz |
| ECC |
Y |
| Internal memory type |
DDR3-SDRAM |
Other features
| Mouse |
Y |
| Disk array controller |
PCIe SAS LSI MegaRAID 8708EM2 |
| CD read speed |
16 x |
| Drive device, buffer size |
16 MB |
| Drive bays size |
1.4 " |
| Number of discs |
4 discs |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
| PCI-X slots |
3 |
Graphics
| Maximum graphics adapter memory |
16 MB |
Design
| Optical drive type |
DVD-ROM |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| System bus data transfer rate |
5.86 GT/s |
| Graphics |
ES1000 |
| Processing die size |
263 mm² |
| Chipset |
Intel 5520 |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

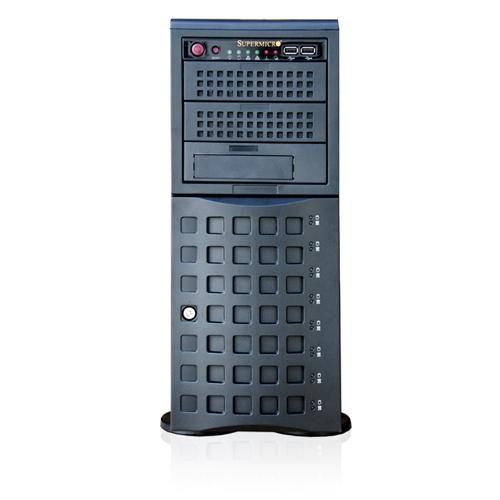

Extra Computer Exone Proxima 1821. Processor frequency: 2.26 GHz, Processor family: Intel® Xeon® 5000 Sequence, Processor model: E5520. Total storage capacity: 2000 GB, Hard drive interface: Serial ATA II, RAID levels: 5, 6, 10, 50, 60. Internal memory: 12 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 144 GB. Maximum graphics adapter memory: 16 MB. Networking features: Gigabit Ethernet
