Management features
| Multicast support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
32000 entries |
| Switching capacity |
96 Gbit/s |
| Throughput |
71.4 Mpps |
Operational conditions
| Heat dissipation |
427 BTU/h |
| Non-operating altitude |
0 - 4572 m |
| Operating altitude |
0 - 3048 m |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Rate limiting |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| 10G support |
Y |
Security
| Static port security |
Y |
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
Performance
| Noise level |
45.5 dB |
| Stackable |
Y |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
375 W |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| SFP+ module slots quantity |
2 |
| Combo SFP ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Design
| Safety |
UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 |
| Electromagnetic compatibility |
FCC Part 15 (Class A), ICES- 003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 |
| Rack mounting |
Y |

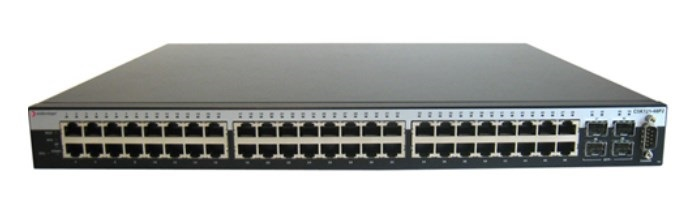

(48) 10/100/1000 RJ45 ports, (2) combo SFP ports, (2) 10GE ports, (2) dedicated high-speed stacking ports and external RPS connector, PoE
Realize adaptive networking with the cost-effective and flexible B-Series.
The B-Series is a cost-effective, feature-rich, stackable switch family that provides a broad set of features today and will continue to deliver benefits well into the future. The B-Series is a scalable, high-performance Gigabit Ethernet switch that provides support for the bandwidth-intensive and latency-sensitive requirements of today’s demanding business applications. The B5 is an excellent choice for environments that require complete multilayer switching capabilities and support for high-density 10/100/1000 Ethernet ports, cost-effective 10GE uplinks, dual IPv4/IPv6 management, basic routing and policy-based automation capabilities for advanced edge deployments.
Customizable Dynamic Policy with Basic Layer 3 Routing.
- Future-proofed with 802.3at high-power PoE support
- Automatic discovery and deployment of VoIP services
- Dynamic, role-based policy support
- High-availability stacking assures reliable network operations
- Automated management features reduce operational costs
- Investment protection via comprehensive lifetime warranty
Business alignment
- Aligns network resource utilization with business goals and priorities
- Reliable network operation for mission-critical applications
Operational efficiency
- Management automation capabilities reduce network operational expenses
- Automatic discovery and deployment of VoIP services
- Role-based policies simplify user management and reduce network operational expenses
Security
- Audits network for adherence to compliance regulations, such as PCI or HIPAA
- Securely allocates network resources according to user roles
- Network security maintained concurrently with user mobility
Support and service
- Industry-leading customer satisfaction and first-call resolution rates
- Personalized services, including site surveys, network design, installation, and training
- Comprehensive lifetime warranty, including feature upgrades and more
