Features
| Cable standard |
Cat5 |
| Cable shielding |
U/UTP (UTP) |

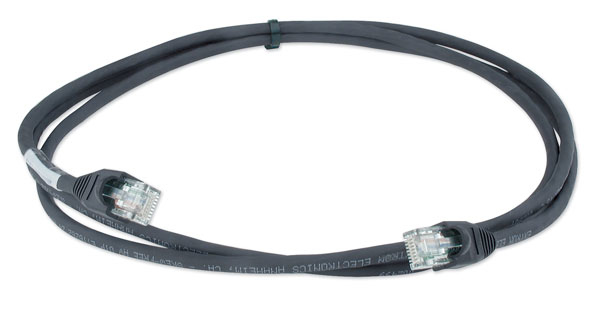

Extron Skew-Free UTP/ 3, 90 cm
Extron's Skew-Free™ UTP cable assemblies are designed exclusively for systems utilizing Extron VT, MTP, and TP Series twisted pair transmitters, receivers, switchers, and distribution amplifiers. The Skew-Free UTP is ideal for the transmission of video, computer signals, and audio or serial control, and incorporates a design pioneered by Extron that eliminates the skew or time delay of signals commonly encountered when CAT 5e/6 cable is used. Common CAT 5e/6 cable can have internal twisted pairs that vary greatly in length, causing image distortion. A difference in length in one twisted pair will produce a noticeable misalignment of the primary colors displayed. With Extron Enhanced Skew-Free™ AV UTP Cable, the length of each twisted pair carrying RGB computer video signals is uniform so the signals arrive at the receiver simultaneously.
Utilizing a design exclusive to Extron, Enhanced Skew-Free AV UTP Cable increases overall isolation performance, which reduces crosstalk. This ensures minimal distortion and improved integrity of the signal, resulting in improved picture quality. This cable eliminates the need to use skew compensation cables or skew equalizers, saving time and lowering installation costs. In addition, Enhanced Skew-Free AV UTP Cable is a fraction of the size of coaxial cable and less expensive. Due to its small size and flexibility, it is space efficient and easy to pull. Extron Enhanced Skew-Free AV UTP Cable is comprised of four, color-coded twisted pairs of 23 AWG wires and can be terminated with RJ-45 connectors.
- Engineered for use with Extron VT, MTP, and TP Series analog twisted pair products — This patent pending cable is designed exclusively for systems utilizing Extron analog twisted pair transmitters, receivers, switchers, and distribution amplifiers
- Extron exclusive design eliminates inter-pair time delays or skew found in traditional CAT 5 / CAT 6 UTP cables
- Four 23 AWG unshielded twisted pairs in a single jacket
- Utilizes Extron Skew-Free UTP cable
