DTP Receiver for HDMI - Decora Wallplate

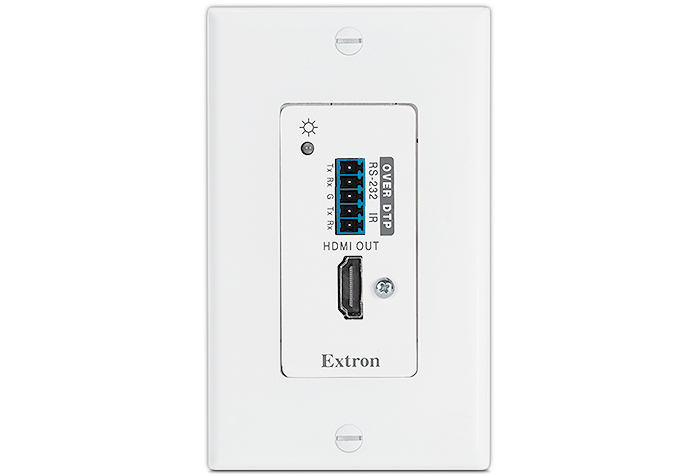

The Extron DTP R HWP 4K 231 D is a single-gang Decora®-style receiver that works with Extron DTP®-enabled products to send HDMI, audio, and bidirectional RS‑232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable. The one-gang form factor provides maximum space efficiency in wall mount, floor box, and furniture mount applications. The DTP R HWP 4K 231 D supports video signals at resolutions up to 4K. It also accepts analog stereo audio signals from a DTP-enabled product over the same shielded twisted pair cable. The wall-mountable design and remote power capability of the DTP R HWP 4K 231 D provide the convenience of placing output connections precisely where they are needed.
The HDCP-compliant DTP R HWP 4K 231 D enables the reliable transmission of HDMI signals, supporting Deep Color up to 12-bit, CEC pass-through, and embedded HD lossless audio formats. In addition, DDC communication of EDID and HDCP is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices. The DTP R HWP 4K 231 D also receives stereo analog audio from a DTP-enabled matrix switcher, switcher, or signal processor. The analog stereo audio signal is sent over the same shielded twisted pair cable as the HDMI and control signals, eliminating the need for a separate cable run to support analog audio at the receiver.
The twisted pair receiver provides other convenient, integrator-friendly features designed to help simplify installation. The DTP R HWP 4K 231 D supports simultaneous transmission of bidirectional RS-232 and IR signals from a control system for AV device control. Also, the receiver can be remotely powered over the shielded twisted pair cable by a DTP-enabled product, allowing both devices to share one power supply.
The DTP R HWP 4K 231 D can be integrated with an Extron DTP CrossPoint® Presentation Matrix Switcher, or other DTP-enabled products to support displays and other output devices at remote locations. The receiver mounts in an included single-gang Decora-style wallplate that fits a standard US one-gang size junction box. The wall-mountable form factor of the DTP R HWP 4K 231 D allows for discreet placement in walls, furniture, and floor boxes.
Extron recommends Extron‑certified XTP DTP 24 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
- Receives HDMI plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable — The DTP R HWP 4K 231 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Input: One DTP® 230 twisted pair input on RJ‑45
- Outputs: One HDMI, stereo audio on captive screw
- Supports computer and video resolutions up to 4K
- Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, HD lossless audio formats, and CEC pass-through
- HDCP 2.2 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Remote power capability — For simplified installation, the receiver can be remotely powered by a DTP-enabled product over the twisted pair connection.
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CATx shielded twisted pair cable — Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
- Accepts additional analog stereo audio signals — The DTP R HWP 4K 231 D accepts stereo analog audio from a DTP-enabled product. Embedded digital audio is not de-embedded from the digital video signal.
- Bidirectional RS‑232 and IR pass-through for AV device control — Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Supports multiple embedded audio formats — The DTP R HWP 4K 231 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
- Compatible with all DTP 230 Series transmitters and DTP‑enabled products — Enables mixing and matching with desktop and wallplate transmitters, as well as other DTP‑enabled products to meet application requirements.
- LED indicator for signal presence and power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ‑45 signal and link LED indicators for DTP port — Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
- Mounts in an included single-gang Decora®-style wallplate — The single-gang Decora-style wallplate is available in black or white to blend with a wide range of environments.
- Highly reliable, energy-efficient external universal power supply included with Tx models, replacement part #70‑775‑01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
