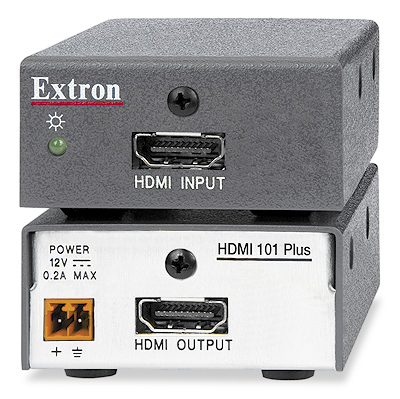

Extron HDMI 101 Plus AV transmitter & receiver

6.75 Gbps, 165 Mbps, 1920 x 1200, 100 ohms, HDMI, black The Extron HDMI 101 Plus is an HDMI equalizer that offers a convenient, economical solution for extending HDMI signals beyond the suggested 15 m (45 ft) distance limit for HDMI cables. The HDMI 101 Plus attaches to the end of a long HDMI cable run of up to 200 ft at 1080p/60 with 8-bit color and 150 ft at 1080p/60 with 12-bit color when used with Extron HDMI Pro Series cables. It automatically provides the necessary active equalization to ensure optimal image quality with HDTV signals up to 1080p/60, 2K, and computer-video signals up to 1920x1200. The HDCP-compliant HDMI 101 Plus is ideal for permanent installations as well as temporary applications with long HDMI cable runs.

The HDMI 101 Plus compensates for poor source signals or low-quality cabling, providing a cost effective means for extending digital video, multi-channel audio, and control signals from HDMI-equipped devices. HDCP compliance ensures the long distance extension of HDCP-encrypted content from Blu-ray Disc players, DTV and cable tuners, DVRs, laptop computers, and other HDCP-enabled sources.

The equalizer can be powered by the attached source device for up to 125 feet (38 meters). This capability eliminates the need for an external power supply although an energy-efficient universal power supply ships with the unit. Use of the included power supply is recommended for longer cable runs and optimal signal integrity. An LED indicator provides a quick means of verifying power and signal presence from the source.

The HDMI 101 Plus is housed in a compact 1" (2.5 cm) high, one-eighth rack width enclosure for easy placement and concealment.
