Display
| Glossy display |
N |
| Display diagonal |
12.1 " |
| Aspect ratio |
16:10 |
| Response time |
8 ms |
| Contrast ratio (typical) |
600:1 |
| Viewing angle, horizontal |
89 ° |
| Viewing angle, vertical |
89 ° |
| Display viewable area HxV |
163.2 x 261.1 mm |
| Display brightness |
300 cd/m² |
| Backlight type |
LED |
| LED backlight |
Y |
Ports & interfaces
| Cables included |
USB, VGA |
| Composite video in |
1 |
| DVI-D ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Performance
| Number of speakers |
2 |
| RMS rated power |
2 W |
| HDCP |
Y |
| Touch technology |
Multi-touch |
| Built-in speaker(s) |
Y |
Power
| Power consumption (typical) |
6 W |
| Power consumption (standby) |
1 W |
| AC input voltage |
100-240 V |
| AC adapter output voltage |
12 V |
| Power supply type |
DC |
Ergonomics
| VESA mounting |
Y |
| VESA mounting interfaces |
75 x 75 mm |
| Wall mountable |
Y |
Weight & dimensions
| Depth |
31.5 mm |
| Weight |
1000 g |
| Width |
293 mm |
| Height |
210 mm |
Packaging content
| Handheld remote control |
Y |
| Quick start guide |
Y |
Design
| International Protection (IP) code |
IP40 |
Additionally
| Display number of colors |
16.78 million colours |
| Colour of product |
Black |
| Display diagonal |
30.73 cm |
| S-Video in |
1 |
| Operating temperature range (T-T) |
-20 - 60 °C |
30.48 cm (12 ") , 1280 x 800, 8 ms, IP40, 300 cd/m2, 700 : 1, HDMI, VGA, DVI-D, Black

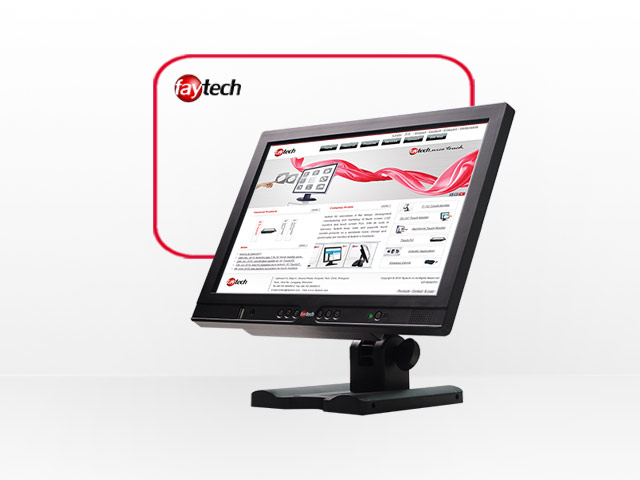

faytech´s 12“ Touchscreen Monitor
faytech´s 12.1" Touchscreen Monitor sets new standards : HDMI port, VGA, Video and S-Video inputs, extra robust components, exclusive design, mountable, backlight LED, guarantee of no defective pixels, high-quality pedestal, extended temperature range and suitable for 24/7-operation are just some of its features.
The high resolution support (e.g. 1080p, 1920x1200 pixels) of these faytech touchscreens make them the perfect choice for a wide variety of applications. Some of these include: as a surveillance monitor when combined with a HTPC or with security cameras; as control panels in the industrial area; in kiosk systems; as cash monitor or information terminals; for machine control; home automation; on farm machinery; on forklifts in distribution centers; wind turbine controls; telematics in transportation systems and in many other areas.
The integrated touch panel is robust and accurate. The touch function is quickly established via the USB port of your PC, and industrial users can connect the touch function through the serial port. faytech includes touchscreen drivers for popular Microsoft (CE, WinXP, Vista, Windows7, Windows 8), Mac and Linux operating systems.
Customization is available for project customers (e.g. higher brightness, brightness sensor, IP protection classes, webcam, scanners, printers, capacitive and SAW touch panels, etc.)
