Display
Display diagonal |
17 " |
Viewable size, horizontal |
337.9 mm |
Viewable size, vertical |
270.4 mm |
Aspect ratio |
4:3 |
Touchscreen technology |
Projected capacitive system |
Response time |
8 ms |
Contrast ratio (typical) |
800:1 |
Display resolution |
1280 x 1024 pixels |
Viewing angle, horizontal |
160 ° |
Viewing angle, vertical |
160 ° |
Display brightness |
250 cd/m² |
Full HD |
N |
Display technology |
LCD |
Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
LED backlight |
Y |
Display type |
LED |
Ports & interfaces
Cables included |
USB, VGA |
PC Audio in |
Y |
DVI-D ports quantity |
1 |
USB 2.0 ports quantity |
1 |
HDMI ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Performance
Linux operating systems supported |
Y |
Number of simultaneous touchpoints |
10 |
HDCP |
Y |
Touch technology |
Multi-touch |
Mac operating systems supported |
Y |
Built-in camera |
N |
Windows operating systems supported |
Y |
Design
Housing material |
Plastic |
International Protection (IP) code |
IP65 |
Power
Power consumption (typical) |
24 W |
Power consumption (standby) |
1 W |
AC input voltage |
100-240 V |
AC adapter output voltage |
12 V |
Power supply type |
AC/DC |
Ergonomics
VESA mounting |
Y |
VESA mounting interfaces |
100 x 100 mm |
LED indicators |
Y |
Wall mountable |
Y |
Operational conditions
Operating relative humidity (H-H) |
20 - 90% |
Weight & dimensions
Depth |
45 mm |
Weight |
5100 g |
Width |
381 mm |
Height |
313 mm |
Certificates
RoHS compliance |
Y |
Certification |
FCC, CE |
Additionally
Display number of colors |
16.78 million colours |
Colour of product |
Black |
Display diagonal |
43.18 cm |
Energy efficiency compliance |
C |
Operating temperature range (T-T) |
-10 - 65 °C |

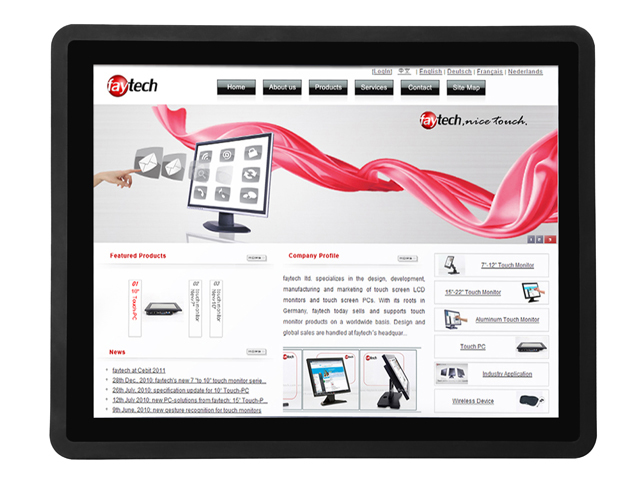

17'' Capacitive Touch Monitor, 1280x1024, 4:3, CR 800:1, IP65
Features:
- patented IP65 Front with silicon seal
- strengthened cover glass, anti glare treatment (chemical etched)
- 10-finger-multi touch capacitive touch
- LED backlight backed Panels in A+ quality
- screwable connection for rugged environments
