Features
| Vibration emission |
2.8 m/s² |
| Dust extraction |
Y |
| No-load speed |
5200 RPM |
| Bore size |
20 mm |
| Sound pressure level |
89 dB |
| Cutting depth (90º) |
55 mm |
| Cutting depth (45º) |
43 mm |
| Diamond disc |
N |
| Blade thickness |
2.2 mm |
| Uncertainty K |
3 dB |
| Uncertainty K |
1.5 m/s² |
| Angle setting range |
-1 - 47 ° |
| Sound power level |
100 dB |
| Blade diameter |
160 mm |

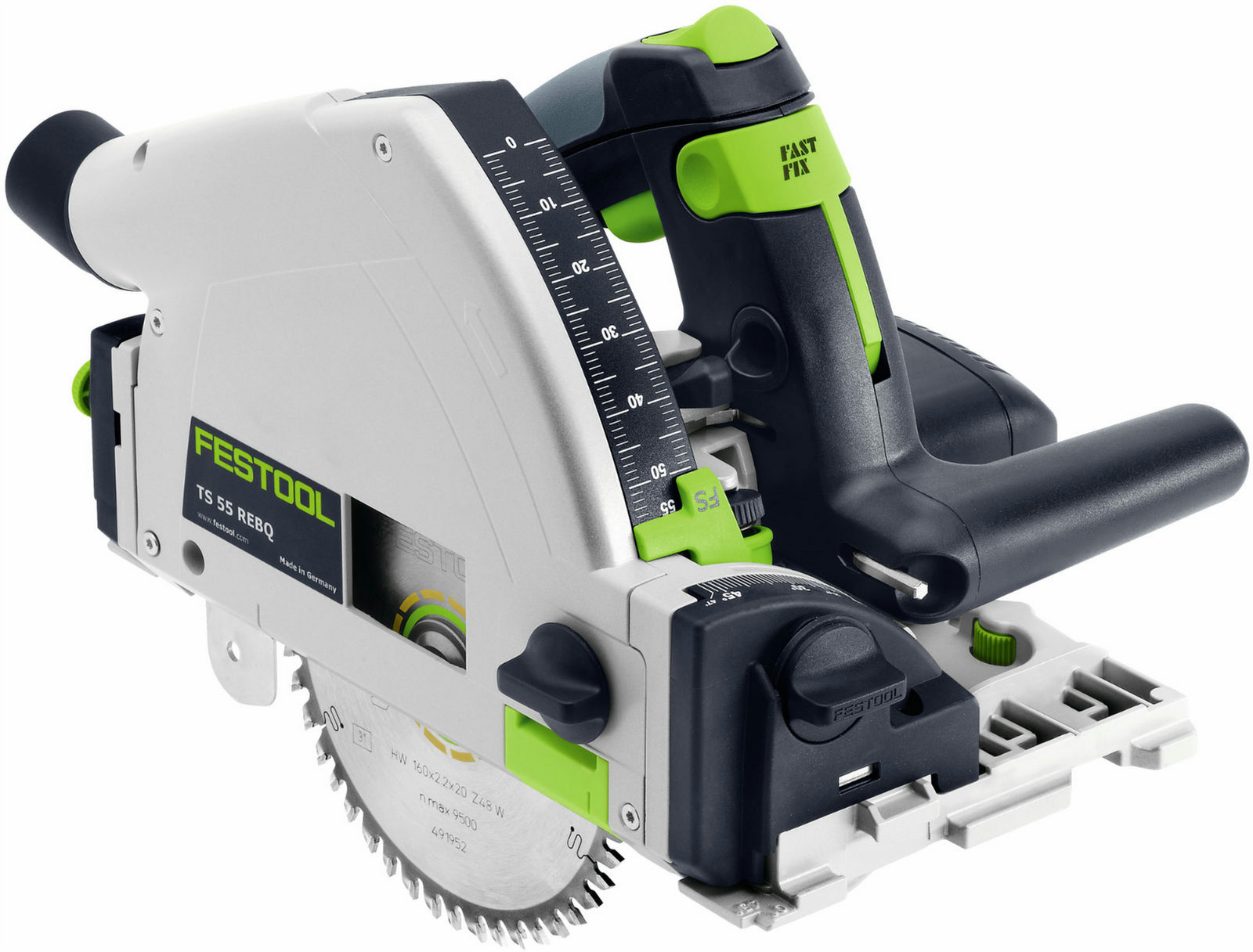

1200W, 160x2.2x20mm, 2000-5200rpm, -1-47°, 55/43mm, 100dB, 4.5kg
The best plunge-cut saw we have ever built.
- Slimline housing for maximum flexibility and close proximity to the wall (12 mm)
- Angle adjustment with undercut function from -1 to 47°
- Guide wedge for safer work and simple positioning in existing joint
- Transparent sliding viewing window provides a good view of the scribe mark and saw blade
Main areas of use
- Precise circular in materials up to 55 mm thick
- Cutting interior doors to length using guide rail and circular saw
- Manufacturing expansion joints in parquet flooring and false joints
- Cutting chipboard to size
- Cutting and processing plasterboard
