Fibaro PHI_PST02-1C

Z-Wave 3 in 1 Sensor(illumination,temperature,door) The Z-Wave Plus 3 in 1 sensor PHI_PST02-1C is designed with three detection sensors:

1. Door-/Windows sensor

2. Temperature sensor

3. Illumination sensor

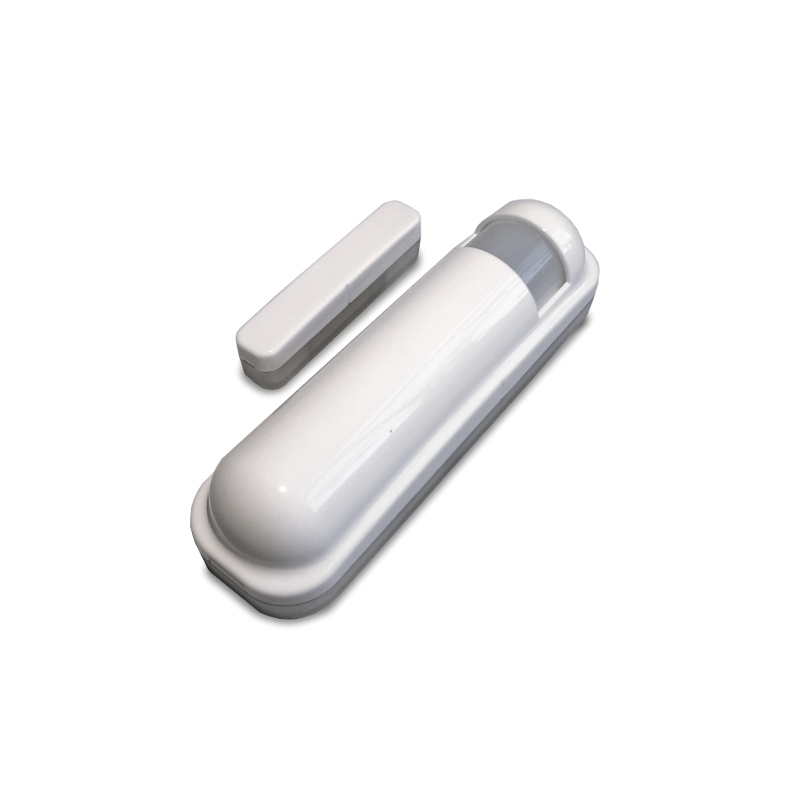

The sensor consists of two parts; a Detector and a Magnet. They are designed to be fitted to doors or windows with the Magnet mounted on the opening part and the Detector mounted on the fixed frame. Opening the protected door/window will remove the magnetic field, trigger the detector and generate an alarm condition, (if the system is armed). The sensor can also applied to automatic light control, one scenario is to get the illumination lux level from built in illumination sensors and send a signal to Z-wave switch to turn the light on once we open the door when the room is dark.

Every time when Door/Window trig, the sensor will also send temperature and illumination value as well. Also the temperature will send out the value when temperature changes.

Note: The illumination sensor does not work with Fibaro Homecenter 2 and Zipabox yet.

When included securely the device is able to accept secure commands and to send secure commands to other devices. The commands and the receiver of the commands sent out on single click and on double click of the rocker can be defined in configuration parameters and association groups.
