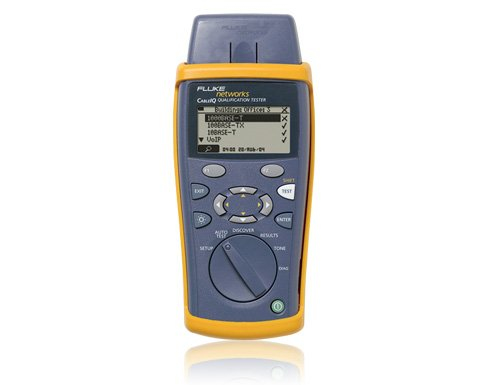

Fluke CIQ100 PoE tester Blue,Yellow network cable tester

1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax, RJ-45/RJ-11, 4 AA Copper qualification tester troubleshoots and qualifies Ethernet network cabling speed (10/100/1000/VoIP).
- Works on live networks to provide Ethernet switch detection and device configuration
- Measure network capacity (10 Meg, 100 Meg, 1 Gig) to determine support for VoIP, data and video
- Advanced troubleshooting diagnostics; insertion loss, cross talk, noise issues
- Core troubleshooting features; length, distance to fault, graphical wire mapping, opens, shorts, power over Ethernet (POE) detection
- Tests all copper cabling media: twisted-pair, coax, and audio
- Locate and trace cables with digital toning technology. Requires IntelliTone 200 Digital Probe (included with CIQ-KIT)

The network tech's vision into cabling bandwidth
CableIQ qualification tester is the first cabling bandwidth tester for network technicians. This Ethernet network cable tester gives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. That means network techs can close trouble tickets faster, reduce on-call time, and save money by better utilizing their existing infrastructure.

Reduce escalated problems by as much as 30%
CableIQ qualification tester's powerful network troubleshooting capability and intuitive interface enable your frontline technicians to identify and troubleshoot a wider range of problems within your network infrastructure. Is the port active? Are the duplex settings matched? Is it a network problem or a Ethernet cable problem? Can the Ethernet cable support the required network bandwidth? CableIQ network cable tester is the only Ethernet cable tester that can answer all these questions before trouble tickets are escalated to the next level reducing problem escalation by up to 30%.

When you deploy Voice over IP (VoIP) or Gigabit Ethernet, you want to make sure that the existing cabling will support the bandwidth requirements of your new equipment. Your cabling was certified, but moves adds and changes have rendered many links incapable of running desired speeds. CableIQ quickly reveals whether a link, including patch cords, is qualified for voice, 10/100BASE-T, VoIP, or Gig. Knowing your cabling's bandwidth capabilities before upgrading can prevent countless hours of future downtime and labor hours wasted on unnecessary troubleshooting.

Plug into any cable, patch panel, or wall jack and see both the cable details (length/wiremap) and far-end device details (speed/duplex settings) at once. A series of both cable and network test functions help you isolate connectivity problems. For instance, if Discover mode shows duplex settings are matched but the problem persists, run Autotest to see if the cabling can support the required bandwidth. If a link is not qualified, CableIQ provides detailed information on the nature and location of cabling performance faults such as crosstalk or large impedance changes. With CableIQ your techs can close trouble tickets faster by cutting cable troubleshooting time in half.

CableIQ's Discover mode shows you exactly what's at the far end of any cable. At the switch, test each cable one at a time. You can quickly see whether the cable is open at the far end, or is connected to a PC. Or use CableIQ's hub blink feature from the workstation to flash the corresponding switch port LED. You may be surprised at how many unused ports you can free up and redeploy using CableIQ.

Determine where installed cables are routed, all from one location.

Attach remote ID's in different locations, then perform multiple cable tests from the distribution center or wiring closet. CableIQ provides the wiremap, pair lengths, distance to fault, and remote ID number of each tested cabling link.

CableIQ supports IntelliTone digital toning by:

Finding cables easier and tracing with better accuracy than any other tool on the market
Toning and tracing safely on a live network
Providing two digital tones and four analog tones
Featuring IntelliTone cable mapping; after tracing, use the IntelliTone Pro Probe 200 to verify wiremap

Empower frontline techs with an easy-to-use-tool

Intuitive user interface and graphical display guides user with little or no training required.

Rotary knob makes learning easy and operation simple you always know what test mode is selected
Portable, lightweight, rugged ergonomic design for easy field use
Four AA batteries - Long lasting battery life for several weeks of testing
Remote adapter doubles as a protective endcap.
